Pilot Business Level 3 DC EV Charger PEVC3302 240kW/360kW/480kW

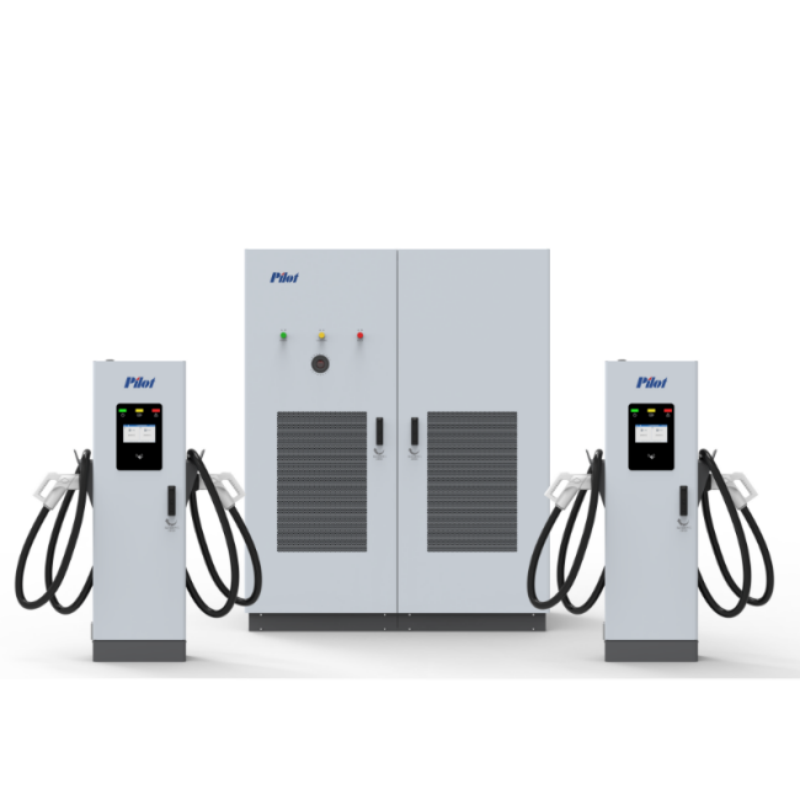

PEVC3302 Cluster DC charging heap solution integrates power distribution, power transformation, and charging cabinet, with an external charging terminal. When charging electric vehicles, the system can flexibly and dynamically allocate output power according to different models and quantities.

Charging Plug

Highlights

Connector

CCS1/ CCS2/ChAdeMO

Output Power

240kW/360kW/480kW

Communication

Ethernet/4G

Precision

Meter With 1% Accuracy

Protection level

IP54, IK10

Start Mode

RFID Card or APP

Mounting

Pole-mount

Charging protocol

OCPP 1.6J

Certificates

CE
Request a Quote Download Catalogue

Share:

Product Description

Product Specifications

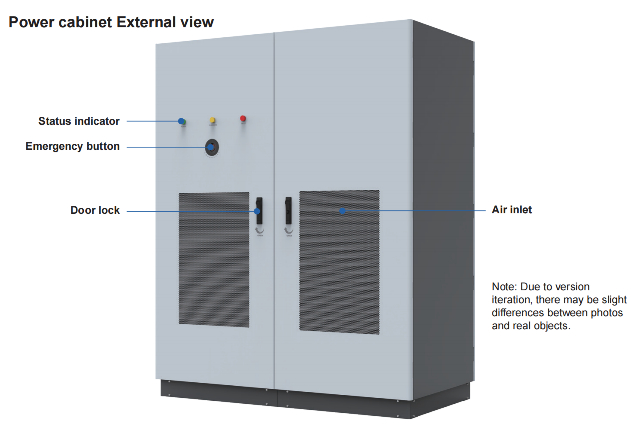

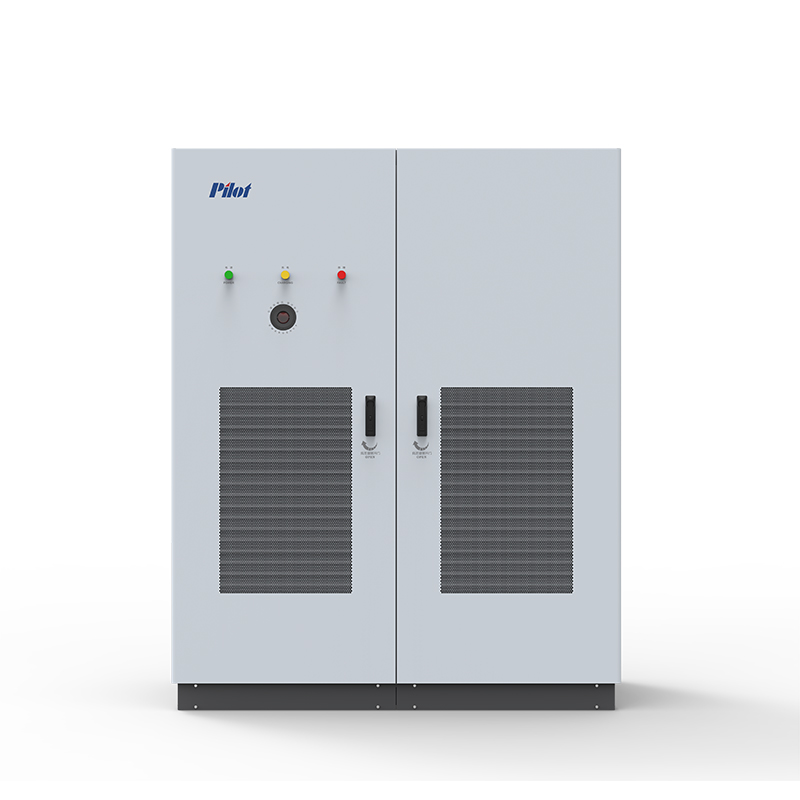

Power cabinet
Parameter type





Input

parameters

 Description PEVC3302E/U-RCAB-480KW


AC Power supply

 3P+N+PE
AC Voltage 400VAC±10%
Frequency 50/60Hz
THDi ≤5%
Efficiency ≥95%(load: 50%–100%)


Power factor

 ≥0.99(load: 50%–100%)


Output

parameters

 Number of Output Ports 8(max)
Voltage 150-1000VDC
Output power 480kW
Voltage accuracy ≤0.5%
Current accuracy ≤1%


Environmental parameters



Operating temperature

 –20°C~+50°C


Storage temperature

 –40°C~+75°C


Lightning protection

 Level C


IP and IK rating

 IP55/IK10


Operating altitude

 ≤2000m
Humidity

5%–95% RH non-condensing
Safety

protection



Insulation resistance

 ≥10MΩ


Impulse voltage

 ≥2500VDC




Protection

functions

 Over current √
Under voltage √
Over voltage √
Short circuit √
Emergency stop √
Over temperature protection √
Surge protection √
RCD √








Others

 Cooling system Forced air cooling
Operational noise level ≤65dB
Power distribution mode Dynamic flexibility distribution


Interface protocol

 CAN(alternative:RS485)
Enclosure type Galvanized sheet steel

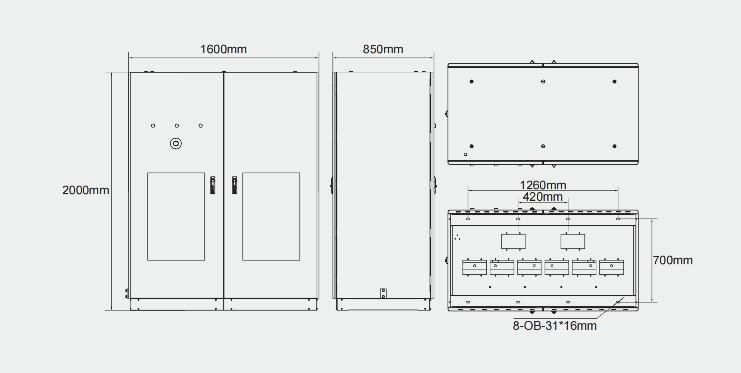

Dimensions (D x W x H) 1600x850x2000mm
Weight 700kg
Compliance IEC61851-1,IEC61851-23,IEC61851-21-2

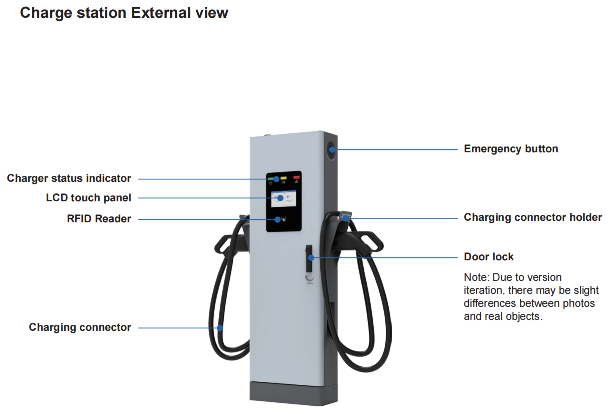

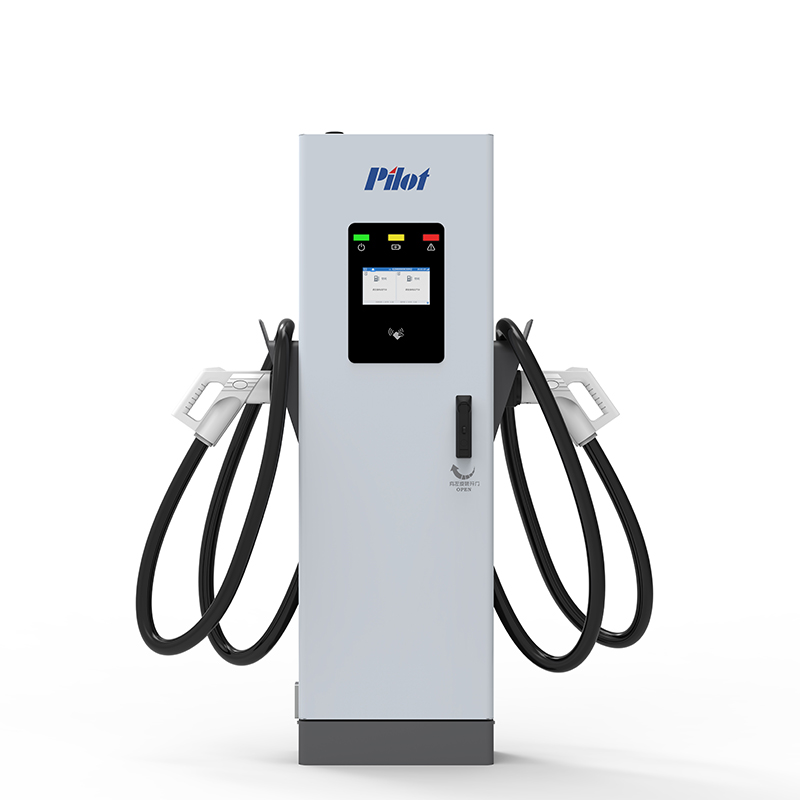

Power Cabinet




Input

parameters

 Description PEVC3302E/U- SPOT-N1 PEVC3302E/U- SPOT-D2
DC Voltage 150-1000VDC
AC Power supply 1P+N
AC Voltage 230V(±10%)
Frequency 50/60Hz




Output

parameters

 Number of Output Ports 1 2
Connector CCS1/CCS2
Voltage 150-1000VDC
Maximum current per channel 250A
Maximum power  per channel 250kW
Voltage accuracy ≤0.5%
Current accuracy ≤1.0%


Environmental parameters

 Operating temperature –20°C~+50°C
Storage temperature –40°C~+75°C
Lightning protection Level C
IP and IK rating IP55/IK10
Operating altitude ≤2000m
Humidity 5%–95% RH non-condensing






Protection

functions

 Over current √
Under voltage √
Over voltage √
Short circuit √
Emergency stop √
Over temperature protection √
Surge protection √
RCD √
Insulation monitoring √
Reverse polarity protection √










Others

 HMI 7-inch touchscreen
Payment support IC Card/APP
Power meter Accuracy Class 1.0 energy meter
DC Cable length 5m
Operational noise level ≤45dB
Communication Ethernet/4G
Interface protocol CAN(alternative:RS485)
Enclosure type Galvanized sheet steel

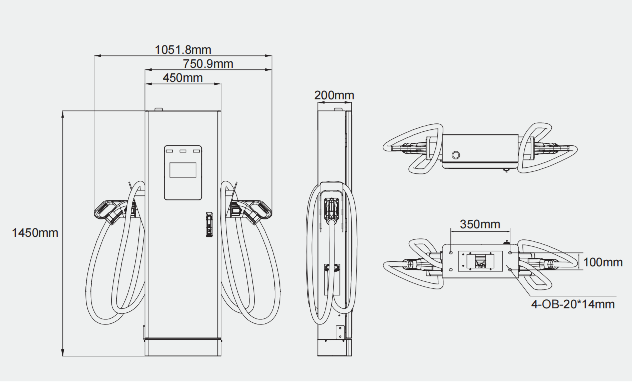

Dimensions (D x W x H) 450x200x1450mm
Weight 70kg 85kg
Compliance IEC61851-1,IEC61851-23,IEC61851-24,IEC62196-1,IEC62196-3

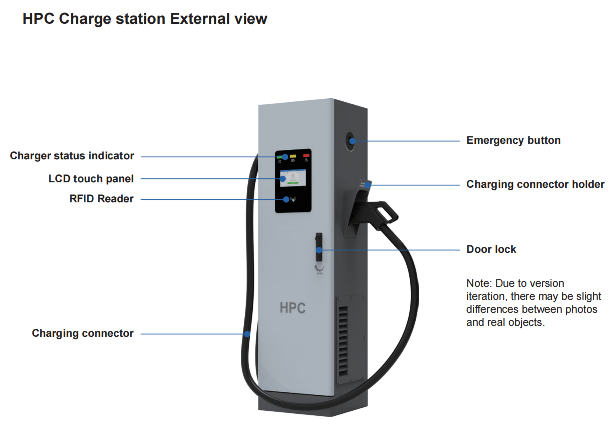

HPC Charge station
Parameter type Description PEVC3302E/U-SPOT-N1


Input

parameters

 DC Voltage 150-1000VDC
AC Power supply 1P+N
AC Voltage 230V(±10%)
Frequency 50/60Hz




Output

parameters

 Number of Output Ports 1
Connector CCS1/CCS2
Voltage 150-1000VDC
Maximum current

500A
Maximum power 480kW
Voltage accuracy ≤0.5%
Current accuracy ≤1.0%




Environmental

parameters

 Operating temperature -20°℃~+50℃
Storage temperature -40°℃~+75℃
Lightning protection Level C
IP and IK rating P55/IK10
Operating altitude ≤2000m
Humidity 5%-95%RH non-condensing






Protection

functions

 Over current √










Others

 Under voltage √
Over voltage √
Short circuit √
Emergency stop √
Over temperature protection √
Surge protection √
RCD √
Insulation monitoring √
Reverse polarity protection √
HMI 7-inch touchscreen
Payment support IC Card/APP
Power meter Accuracy Class 1.0 energy meter
DC Cable length 5m
Operational noise level ≤60dB
Communication Ethernet/4G
Interface protocol CAN(alternative:RS485)
Enclosure type Galvanized sheet steel

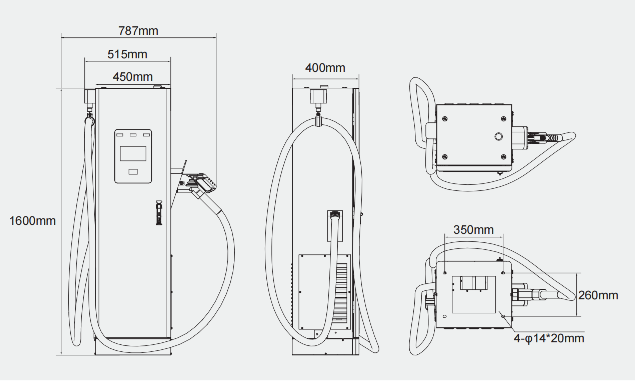

Dimensions (D*W*H) 450×400×1600mm
Weight 120kg
Compliance EC61851-1,IEC61851-23,IEC61851-24,IEC62196-1,IEC62196-3
