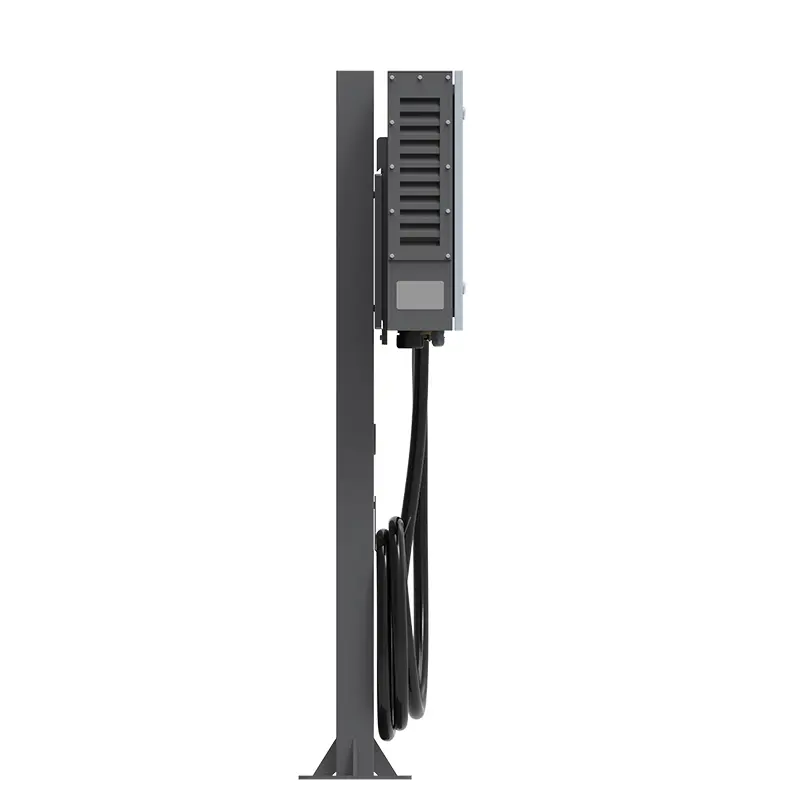

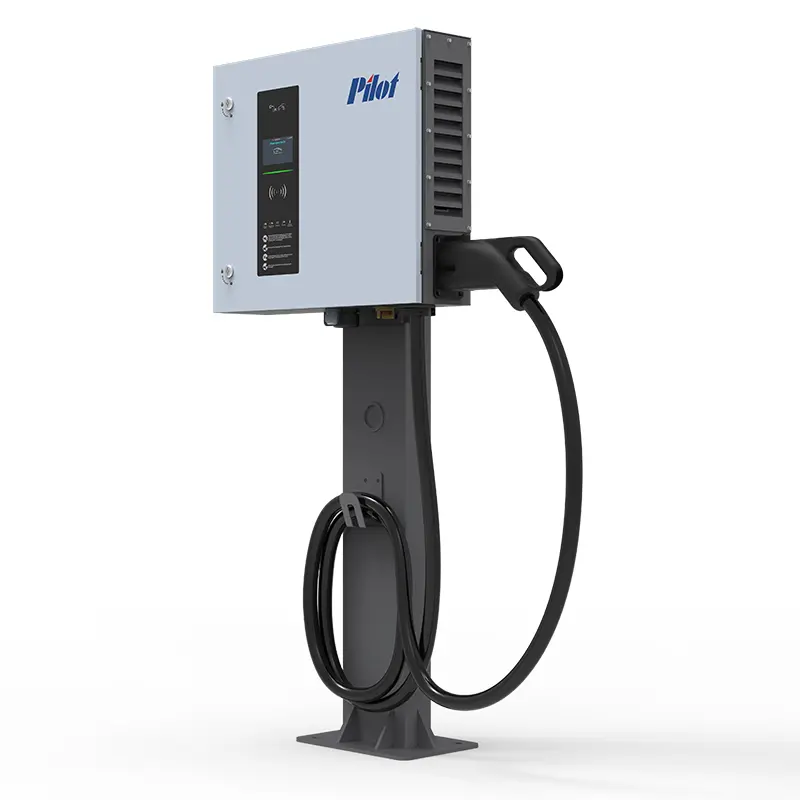

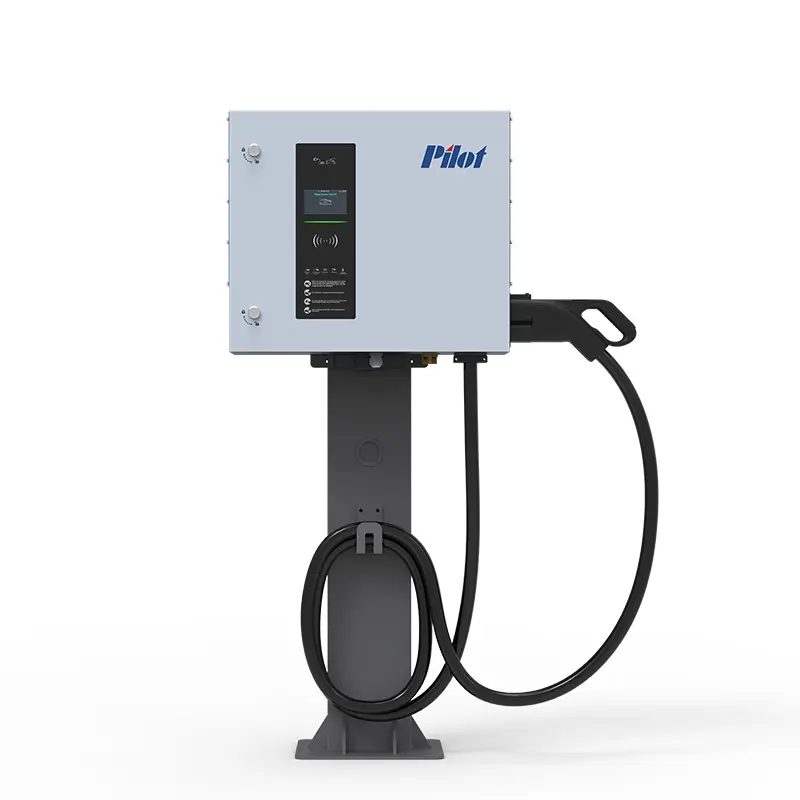

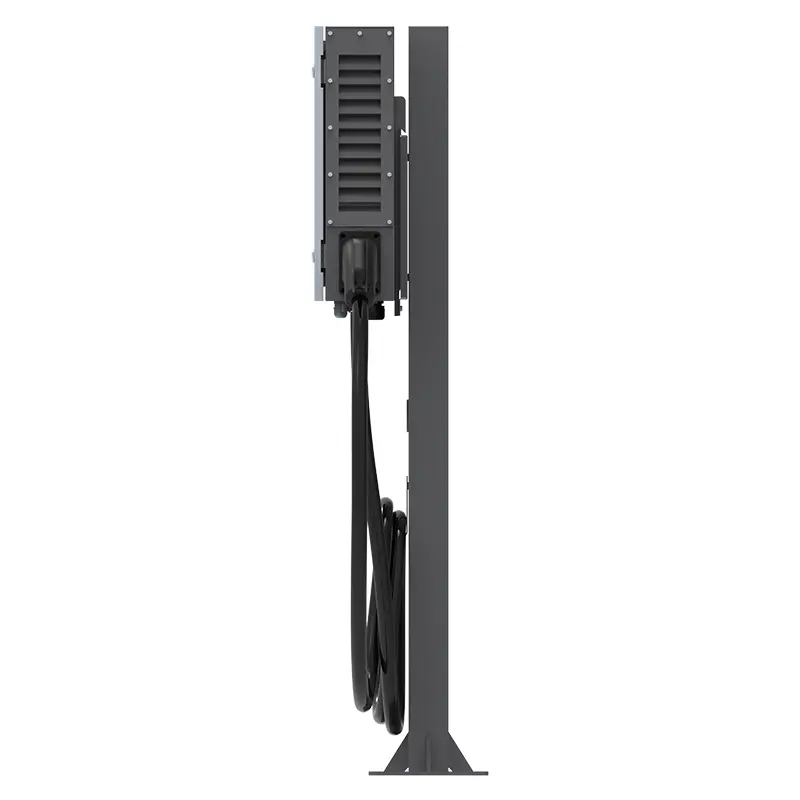

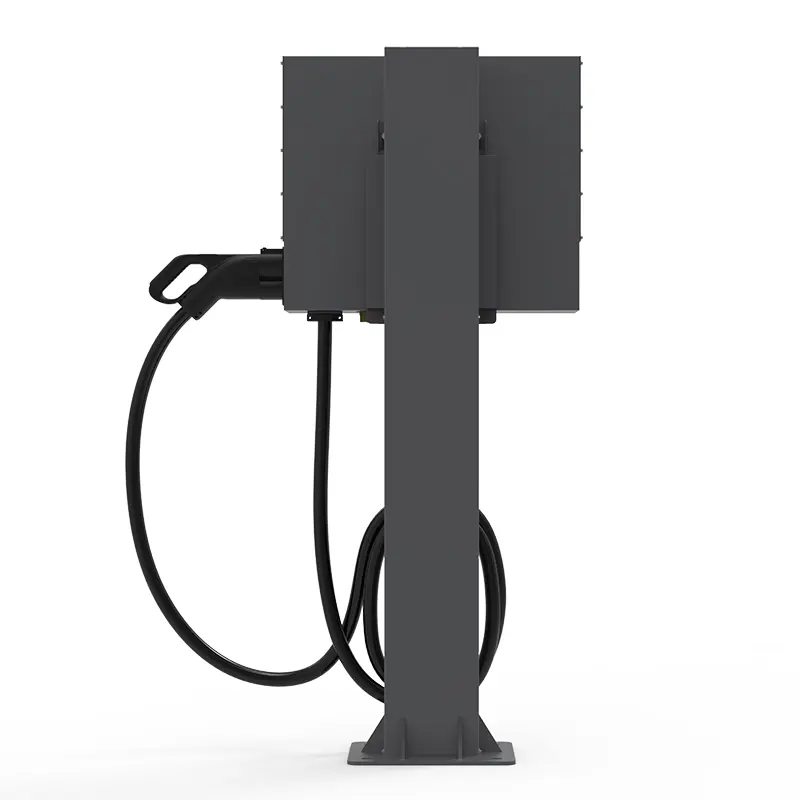

Pilot Business DC EV Charger PEVC3401 30kW

PEVC3401 is a high-power DC charger. It has excellent adaptability and compatibility, can be installed indoors or outdoors and meet a variety of charging needs. It provides All-round security protection and supports multiple communication.

Charging Plug

Highlights

Connector

CCS Combo 1/ CCS Combo 2

Output Power

30KW/40KW

Communication

Ethernet/4G

Precision

Meter With 1% Accuracy

Protection level

IP54, IK10

Start Mode

RFID Card or APP

Mounting

Wall-mount/Pole-mount

Charging protocol

OCPP 1.6J

Certificates

CE, RoHS
Request a Quote Download Catalogue

Share:

Product Description

Product Specifications

Power Input Model PEVC3401 Series
Input Type 3-Phase
Input Wiring Scheme 3P+N+PE
Rated Voltage 400VAC±10%
Max.THDi 5%
Min.Power Factor 0.98
Grid Frequency 50Hz or 60Hz
Power Output Output Voltage 150-1000VDC
Max.Current 100A
Rated Power 30kW
User Interface Charge Connector CCS2 Plug(CCS1 Plug Optional)
IFD Indicato Green/Blue/Red,Progress Indicator
LCD Display 4.3″Touch Color Screen
RFID Reader ISO/IEC14443 RFID Card Reader
Start Mode RFID Card or APP
Communication Backend Ethernet,Optional:Cellular/WiFi/Bluetooth
Charging protocol OCPP-1.6J
Safety and Certification Energy Meter DC Meter With 1% Accuracy
Residual Current Device Yes
Internal FUSE Yes
Ingress Protection IP54
Impact Protection IK10
Cooling method Fan Cooling

Max.Operating Noise Level

 65dB
Electrical Protection Over/Under Voltage Protection,Over Current Protection,Short Circuit Protection,Over/Under Temperature Protection,Lightning Protection,Ground Protection
Certification CE

Certification and Conformity

 IEC62196-1,IEC62196-3,IEC61851-1,IEC61851-23,IEC61851-24
Environment Mounting Wall-mount/Pole-mount
Storage Temperature -40℃-+75℃
Operating Temperature -30℃ -+50℃
Max.Operating Humidity 95%,Non-condensing
Max.operating altitude 2000m
Mechanical Product Dimension 640mm*160mm*550mm(W*D*H)
Package Dimension 808mm*438mm*748mm(W*D*H)
Weight 80kg(Net)/85.7kg(Gross)
Accessory Cable holder,Pedestal(Optional)

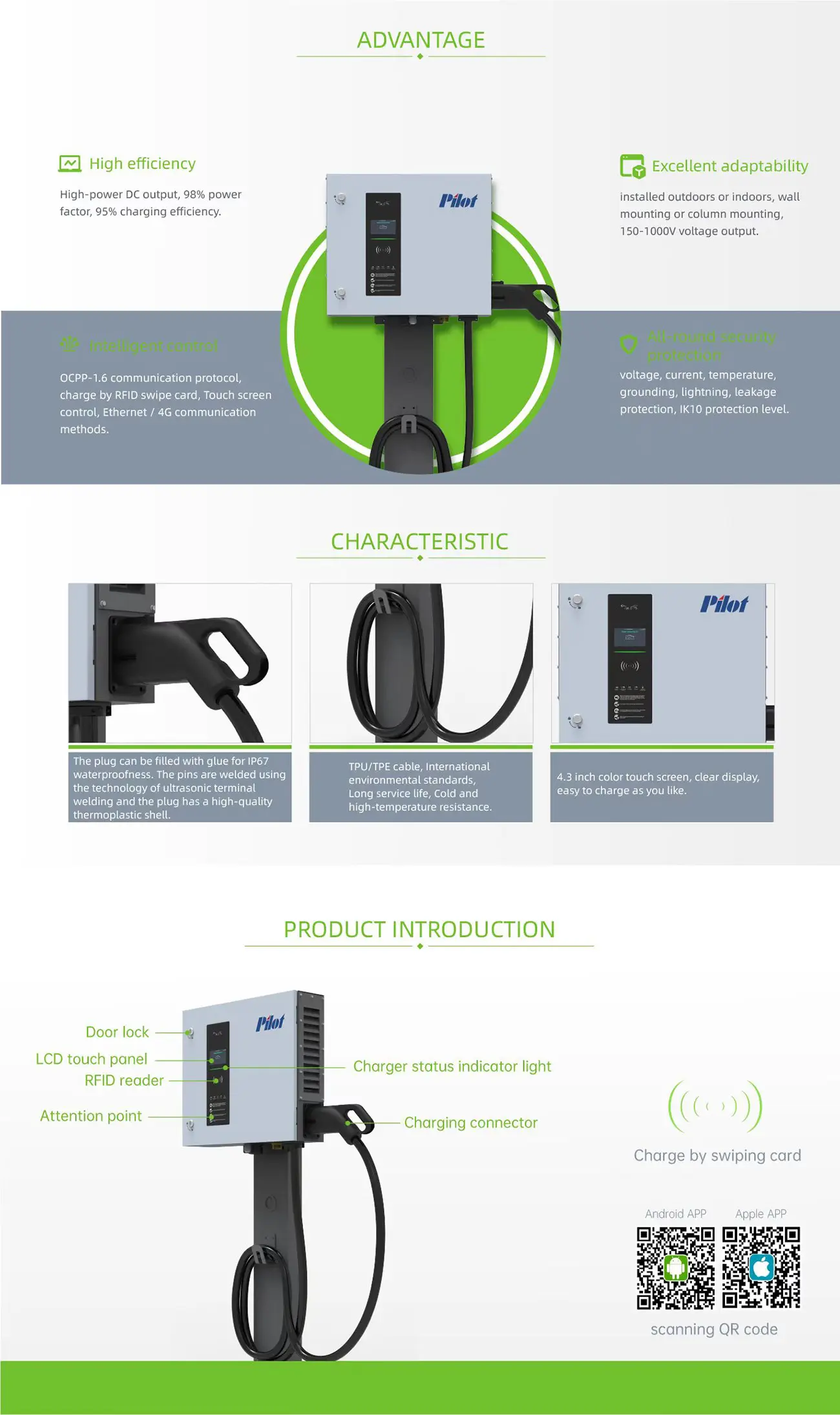

Product Features

Compatible Charger Connectors

Supports widely used charger connectors, including CCS1, CCS2 and CHAdeMO.

Multi-directional Protection

Multiple protection mechanisms, IP54 rating, dustproof and waterproof.

Smart Connectivity

Seamless integration with smart systems for efficient communication and control. Optional RFID/App etc. for your family identification and management.

User-Friendly Operation

Easy to install and operate, ensuring a hassle-free charging experience for home users: View charging data and status; Set up various charging configurations, charging current, monitoring mode, etc; Scheduled charging; Firmware update；

Established Trust and Proven Reliability in Charging Technology

Extensive Experience in Major Projects

Our track record speaks for itself. With years of expertise in implementing large-scale projects across the globe, we bring a wealth of practical knowledge and proven solutions to your doorstep. Our seasoned professionals are equipped to handle the complexities of any size project, delivering excellence every time.

Innovation and Technological Prowess

At the heart of our operation lies a commitment to technological innovation. We pride ourselves on our in-house research and development, producing cutting-edge charging technologies that lead the market. Our solutions are born from a fusion of advanced science and practical application, ensuring you benefit from the latest advancements in EV charging.

Manufacturing Capacity and Excellence

Our state-of-the-art manufacturing facilities are the backbone of our promise to you. Boasting impressive production capabilities, we ensure a seamless transition from design to delivery. Our plants operate with precision and efficiency, allowing us to meet demands swiftly and scale operations as needed, without compromising on quality.

Global Presence and Local Support

With a network of overseas branches, as evidenced by our locations from Turkey to Southeast Asia, we’re more than just a global brand – we're a local partner. Our international footprint enables us to provide you with local support and services, ensuring that wherever you are, a Pilot X Piwin office isn't far away. We're local everywhere, bringing global expertise to your local community.

Tested and proven in the harshest of conditions.

Weather scenes
Customizable Branding

Scorching heat

Rainy Day

Snowy day

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support

Learn more from our product video review.

Shaping Business With Our 25,000+ Successful Projects

The products have been exported to over 40 countries and regions overseas.
Pilot x Piwin DC EV Charging Station in a Canadian parking garage, designated for electric vehicles only.

DC EV Charging Station

Country Canada
In the heart of Canada's bustling urban environments, PILOT & PIWIN's state-of-the-art DC EV Charging Stations are a testament to our innovative spirit. Seamlessly integrated into underground parking structures, our chargers offer robust, rapid, and reliable service. Each station boasts an impressive up to 160kW output, ensuring efficient power delivery with overvoltage and surge protection. Catering to the high demands of modern electric vehicles, we emphasize safety and efficiency with over 95% operational efficiency and multi-standard support including CCS1, CCS2, and CHAdeMO. PILOT & PIWIN are powering the drive towards a sustainable future, one charge at a time.

DC EV Charging Station

Country Japan
The Pilot X PIWIN DC EV Charging Station is revolutionizing power delivery for large vehicles in Japan. With a formidable output range of 60kW to 160kW and advanced CE-certified safety mechanisms, our chargers handle the rigors of heavy usage while prioritizing vehicle and user protection. Equipped with a comprehensive suite of safeguards including over/under voltage, current, short circuit, and surge protection, every charge is efficient and secure. Our intuitive 7" color touch screen ensures seamless user interactions, enhancing the charging experience at every turn.
AC EV Chargers by Pilot x Piwin in an Italian underground parking garage, providing electric vehicle charging solutions.

DC Fast Charging Pile

Country Italy
In the heart of Italy’s bustling streets, an underground sanctuary of power breathes life into electric vehicles. Embrace the efficiency of Pilot x Piwin’s DC Fast Charging Pile, where robust design meets revolutionary technology. Our chargers, equipped with overcurrent and lightning protection, stand guard in Italian garages, offering safe harbor and swift charging to the eco-conscious driver.

AC EV Charger

Country United Arab Emirates
In a bustling company parking lot in the United States, Pilot x Piwin's AC EV Charger stands at the forefront of convenience and technological innovation. Designed for both commercial and residential use, this charger epitomizes flexibility and cost-efficiency. Equipped with an array of protective features such as over-voltage and short circuit safeguards, this model caters to the safety-conscious, environmentally aware business. With its user-friendly interface and robust design, it's an ideal solution for busy workplaces looking to offer employees and visitors a reliable charging option.

DC EV Charging Station

Country Romania
In Malaysia's tranquil suburbs, Pilot x Piwin's DC EV Charging Station stands as a beacon of rapid and reliable charging. Catering to eco-friendly drivers on the outskirts, this station offers a swift power-up, marrying innovation with the serenity of suburban life.

DC EV Charging Station

Country Norway
In the bustling outdoor parking lot of a Korean office building, the Pilot x Piwin DC EV Charging Station offers a seamless integration of efficiency and accessibility. Designed to support the energy demands of a fast-paced urban environment, this station provides a swift recharge for electric vehicles, ensuring that professionals are powered for their next journey.

DC EV Charging Station

Country Thailand
Nestled in the heart of a Thai urban district, the Fast DC EV Charging Station by Pilot x Piwin emerges as a beacon of modern technology and convenience. This station offers quick and efficient charging solutions, catering to the bustling lifestyle of the city. Here, drivers can swiftly power their electric vehicles, immersing themselves in the innovation that drives sustainable transportation forward.

DC EV Charging Station

Country Singapore
At a newly constructed charging hub in Singapore's metropolitan area, the DC EV Charging Station stands as a testament to Pilot x Piwin’s commitment to innovative energy solutions. Amid the city’s pulsing rhythm, this charging oasis is a symbol of progress, providing quick, efficient, and accessible energy for the urban electric vehicle community. It’s here that the promise of a cleaner, more sustainable future is not just envisioned but actively realized.
Rural American setting featuring an AC EV Charger by Pilot x Piwin, highlighting eco-friendly charging solutions in picturesque countryside locations.

AC EV Chargers

Country United States
Nestled in the serene countryside of the United States, a duo of AC EV Chargers from Pilot x Piwin introduces a blend of modern convenience and sustainable technology to a rustic setting. These chargers provide a vital link for eco-conscious travelers, bringing the future of clean transportation into the heart of America's pastoral landscapes. With the promise of a greener footprint, they stand as silent sentinels of progress, offering a quick and reliable charge to those who traverse the scenic routes.

Nigeria TV Station Solar Battery Energy Storage System

Country Nigeria
Nigeria TV Station Solar Battery Energy Storage System

The Oman Well Servicing Rig Energy Storage System Integration Project

Country Oman
Pilot carries out the Oman Well Servicing Rig Project integrates a 100kW/100kWh lithium BESS with traditional oilfield operations.

The Humewell Pharma 2MW PV + 1MW/2MWh BESS Microgrid Integration Project

Country Africa
This pilot project integrates a 2MW photovoltaic system with a 1MW/2MWh lithium battery energy storage system (BESS) for Humewell Pharma in Africa.

Recommended Products

Pilot Home AC EV Charger PEVC2108E from 3kW to 22kW

PEVC2018E is a basic AC EV Charger ,which include wall-mounting and stand-mounting. Suitable for home and business indoor and outdoor uses. Elegant design and superior performance with all-round protection functions such as IP65 protection level, good dust proof and waterproof performance, Type A+6mA DC leakage protection, accurate measurement of charging data. It supports a variety of charging modes, like plug and play charging, swipe charging, APP charging, scan code charging. Compatible with Bluetooth/WiFi/Ethernet/4G and other communication functions.

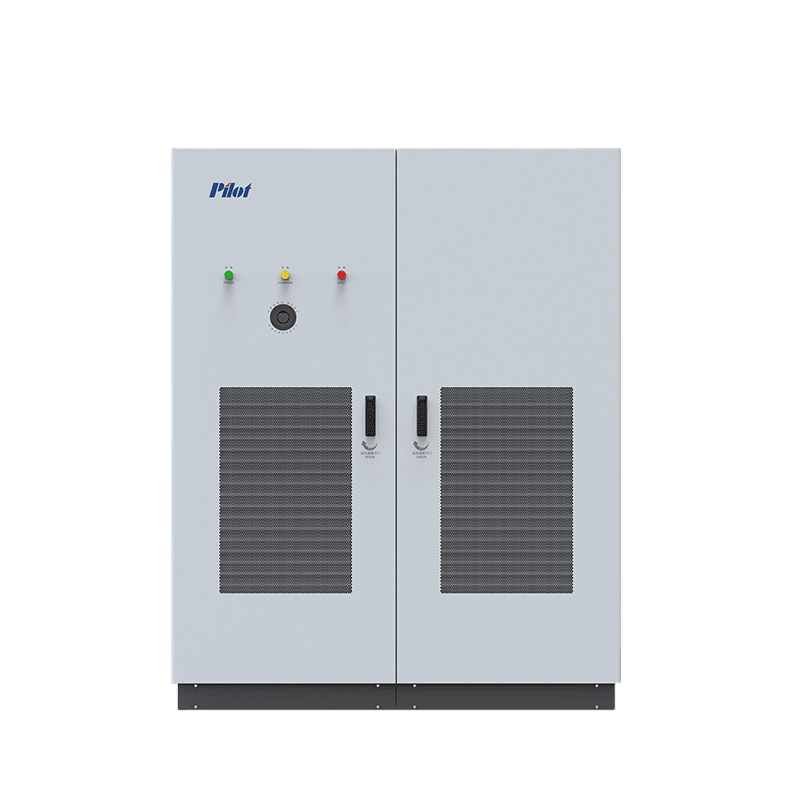

Pilot Business Level 3 DC EV Charger PEVC3302 240kW/360kW/480kW
