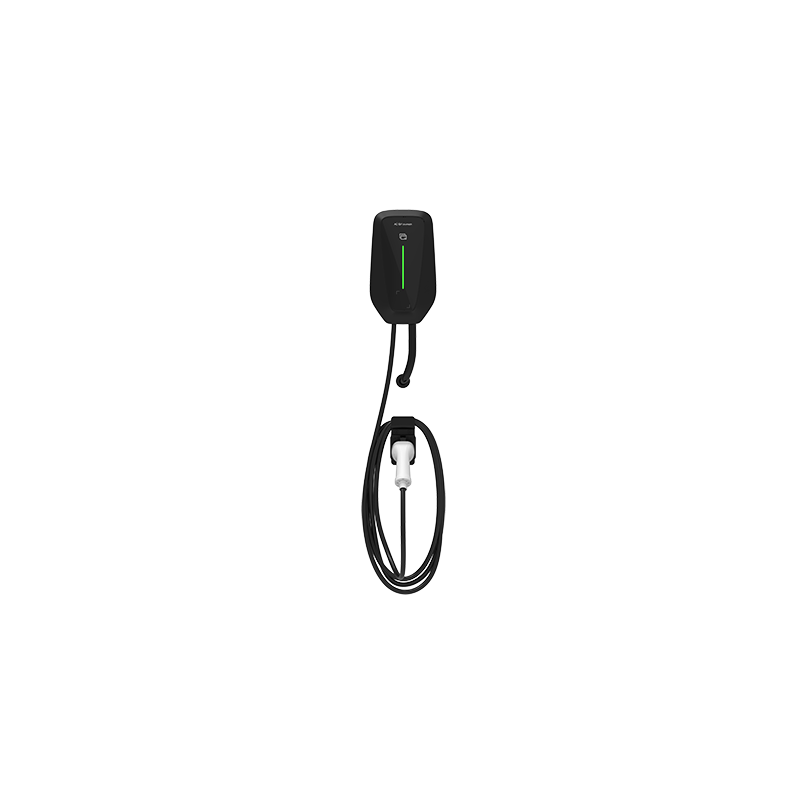

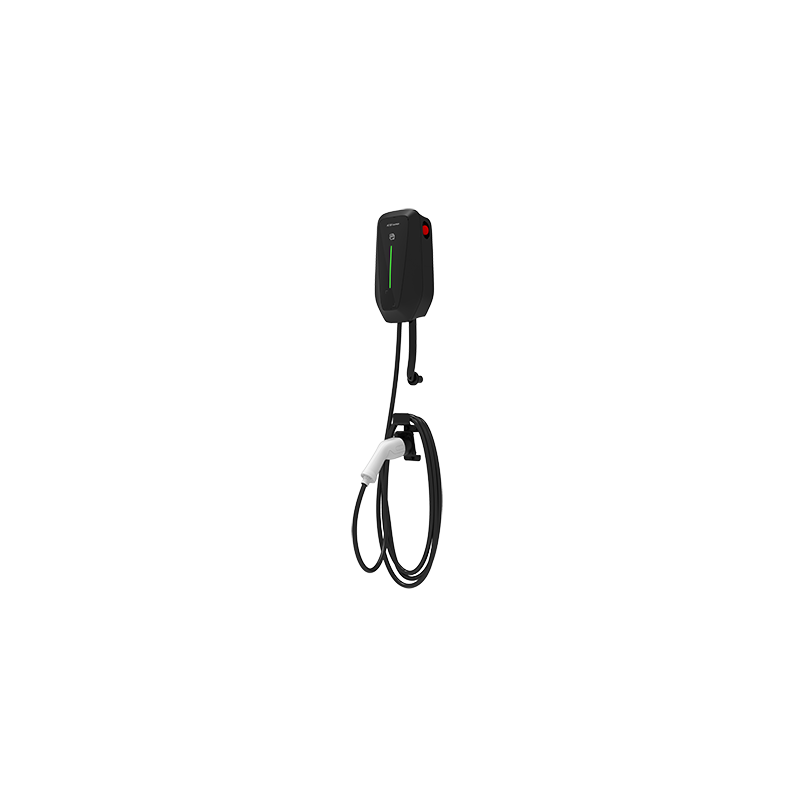

Pilot Home AC EV Charger PEVC2108E from 3kW to 22kW

PEVC2018E is a basic AC EV Charger ,which include wall-mounting and stand-mounting. Suitable for home and business indoor and outdoor uses. Elegant design and superior performance with all-round protection functions such as IP65 protection level, good dust proof and waterproof performance, Type A+6mA DC leakage protection, accurate measurement of charging data. It supports a variety of charging modes, like plug and play charging, swipe charging, APP charging, scan code charging. Compatible with Bluetooth/WiFi/Ethernet/4G and other communication functions.

Charging Plug

Highlights

Connector

Type 2, Type 1

Output power

3.5kW, 7kW, 11kW or 22 kW

Communication

4G/ Ethernet/ WiFi/ Bluetooth

Precision

accuracy Class 1.0 embedded metering

Protection

IP65, IK08

Start mode

Charging via QR code scanning, RFID card

Mounting

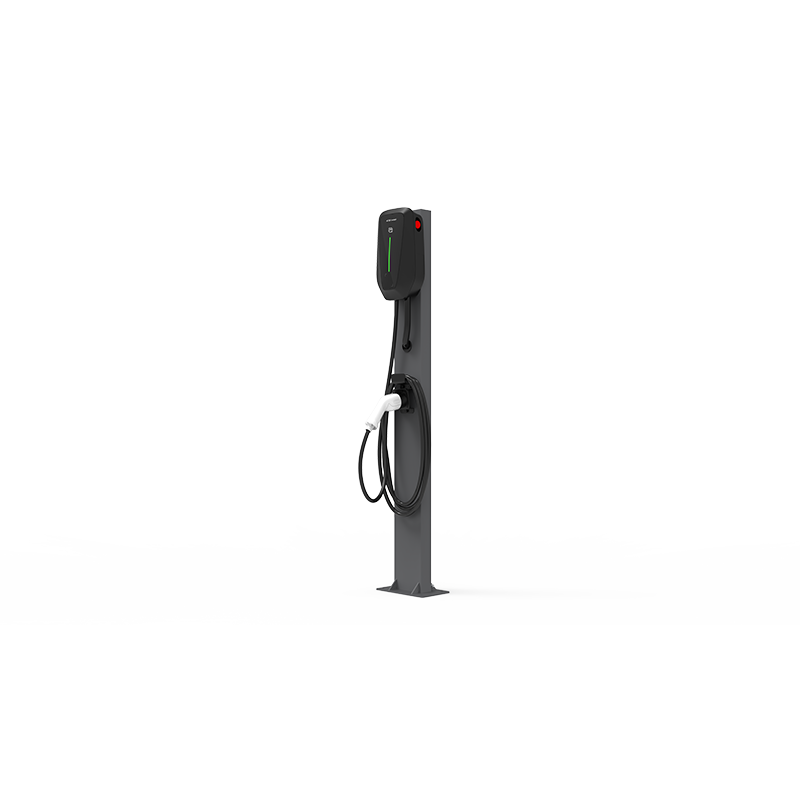

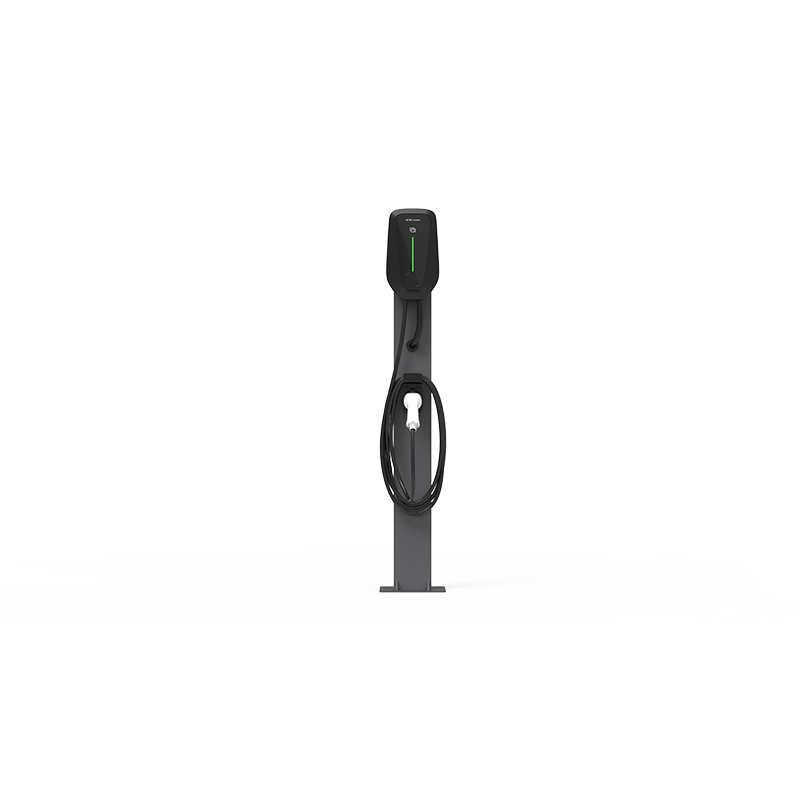

Wall-mount/Stand-mount

Charging Protocol

OCPP-1.6JSON

Certificates

CB, CE
Request a Quote Download Catalogue

Share:

Product Description

Product Specifications

Parameter type Description PEVC2108


Input parameters

 Power Supply 1P+N+PE 3P+N+PE
Rated voltage 230VAC±10% 400VAC±20%
Frequency 50/ 60Hz


Output parameters

 Number of output ports 1
Output voltage 230VAC±10% 400VAC±20%
Output current 16A/ 32A
Output power 3 kW/ 7 kW 11 kW/ 22 kW






Protection functions

 Overvoltage/Undervoltage protection √
Over current protection √
Short circuit protection √
Lightning protection √
Emergency stop protection √
Leakage protection

RCD Type A  + 6mA DC










Basic parameters

 Electric energy measurement

Accuracy Class 1.0 energy meter
Display mode

Bluetooth APP display
Plug cable length

5m
Communication

Bluetooth/Ethernet/ WiFi/ 4G LTE
Protocol

OCPP-1.6 (JSON)
Shell material

(ABS+PC)-Blend
Shell color

Metallic Grey
Connector type (IEC 62196-2)

Type 2
Start Mode

Plug&play/ RFID card/ APP

Dimensions(W*H*D)

208mm*358mm*102mm


Environmental

Parameters

 Operating temperature

-30℃~50℃
Storage temperature

–40°C ~ 80°C
Altitude

≤2000m
Humidity

≤95% ，non-condensing
Protection level

IP65

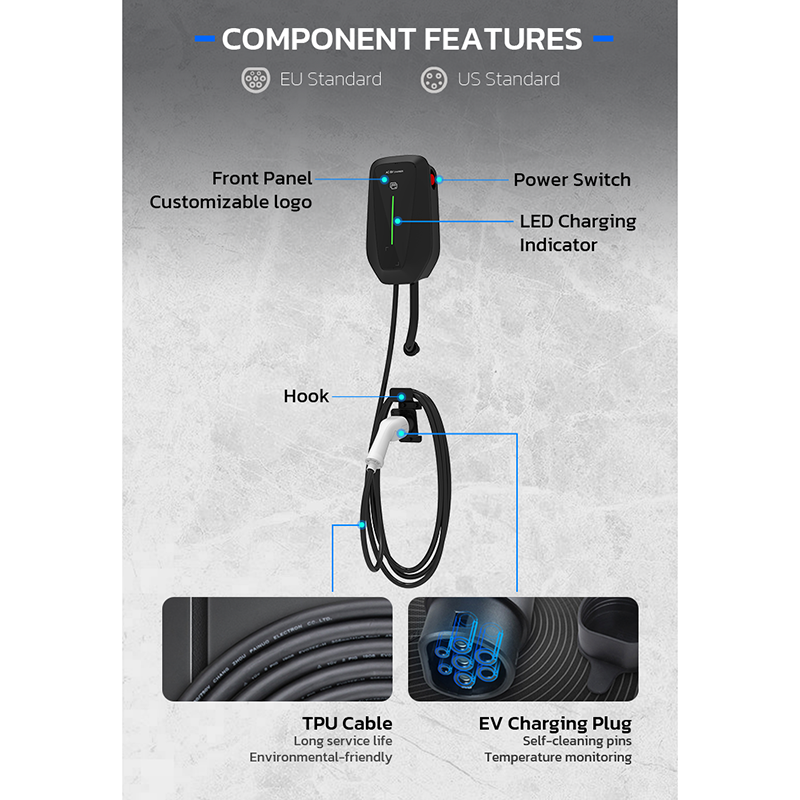

Product Features

Compact and Stylish Charging

The AC EV Charger blends into any setting with its ergonomic design and space-saving mounting options, perfect for both indoor and outdoor use.

Smart Safety Features

Equipped with RFID/App for secure user management, our Level 2 charger ensures a safe, efficient charge with surge protection and automatic functions.

Fast and Efficient

Power up your EV in just 3-5 hours with our 220~240V charger, offering a durable build and consistent energy output for a swift recharge.

Universal Compatibility

Designed to meet the needs of all EVs, our charger supports SAE J1772 and IEC 62196-2 standards for seamless connectivity and user experience.

Established Trust and Proven Reliability in Charging Technology

Extensive Experience in Major Projects

Our track record speaks for itself. With years of expertise in implementing large-scale projects across the globe, we bring a wealth of practical knowledge and proven solutions to your doorstep. Our seasoned professionals are equipped to handle the complexities of any size project, delivering excellence every time.

Innovation and Technological Prowess

At the heart of our operation lies a commitment to technological innovation. We pride ourselves on our in-house research and development, producing cutting-edge charging technologies that lead the market. Our solutions are born from a fusion of advanced science and practical application, ensuring you benefit from the latest advancements in EV charging.

Manufacturing Capacity and Excellence

Our state-of-the-art manufacturing facilities are the backbone of our promise to you. Boasting impressive production capabilities, we ensure a seamless transition from design to delivery. Our plants operate with precision and efficiency, allowing us to meet demands swiftly and scale operations as needed, without compromising on quality.

Global Presence and Local Support

With a network of overseas branches, as evidenced by our locations from Turkey to Southeast Asia, we’re more than just a global brand – we're a local partner. Our international footprint enables us to provide you with local support and services, ensuring that wherever you are, a Pilot X Piwin office isn't far away. We're local everywhere, bringing global expertise to your local community.

Tested and proven in the harshest of conditions.

Weather scenes
Customizable Branding

Scorching heat

Rainy Day

Snowy day

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support
