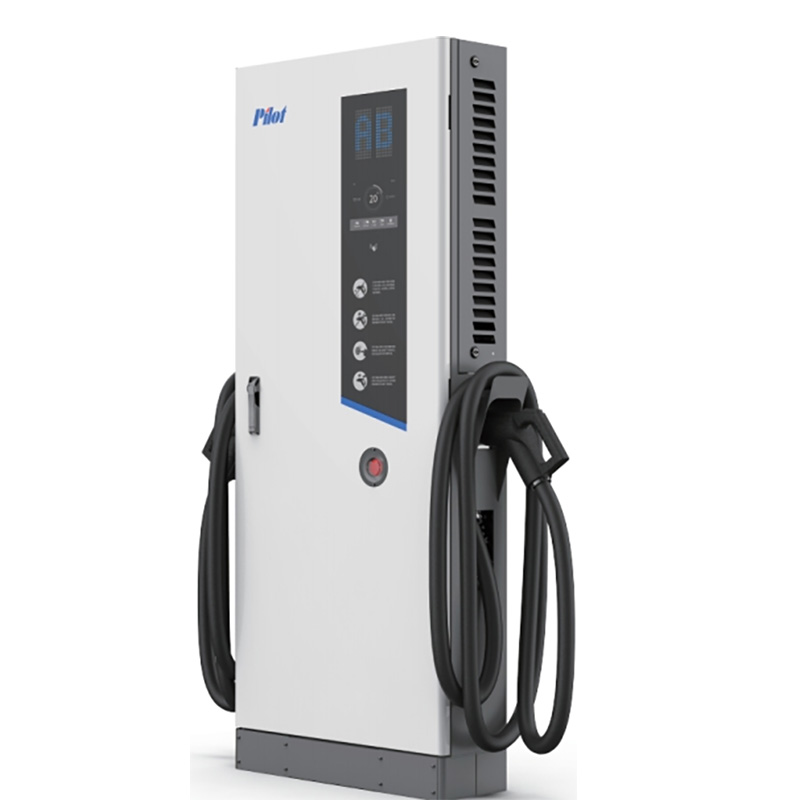

Pilot Business DC EV Charger PEVC3106 60kW

PEVC3106E series DC electric vehicle charger, perfect for public and private locations, including retail and commercial parking spaces, fleet charging stations, highway rest areas, workplaces, and homes, this EV charger offers quick charging capabilities for on-the-go charging.

Charging Plug

Highlights

Connector

CCS1/ CCS2/ChAdeMO

Output Power

60KW

Communication

Ethernet/4G

Precision

Meter With 1% Accuracy

Protection level

IP54, IK10

Start Mode

RFID Card or APP

Mounting

Pole-mount

Certificates

CE
Request a Quote Download Catalogue

Share:

Product Description

Product Specifications

Parameter type Description PEVC3106 Series
Input Power supply 3P+N+PE
Rated voltage 400VAC±10%
Frequency 50Hz or 60Hz
Max.THDi ≤5%
Efficiency ≥95%
Power factor ≥0.98
Output Connector type CCS Combo1/CCS Combo2
Voltage 150-1000VDC
DC current 200A
Power rating 60kW
Voltage accuracy ≤0.5%
Current accuracy ≤±1%
General HMI 7-inch touchable screen ISO/IEC14443 RFID Card Reader
Payment method RFID Card, APP
Cable length 5M Ethernet,Optional:Cellular/WiFi/Bluetooth
Communication protocol OCPP-1.6J
Operating noise level ≤75dB DC Meter With 1% Accuracy
Ingress rating IP54 Yes
IK rating IK10 Yes
Power meter Accuracy class 1.0 energy meter
Enclosure Galvanized steel, surface spayed with anti-corrosion paint
Place of installation Indoor/Outdoor
Product dimension(W*D*H) 700*240*1750mm
Package dimension(W*D*H) 1100*750*1890mm
Protection Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection, Over Temperature, Ground Protection
Certification Standard EN/IEC61851-1,EN/IEC61851-23,EN/IEC61851-24,IEC62196-1,IEC62196-3
Environmental Operating Temperature -30℃ -+50℃
Storage Temperature -40℃-+75℃
Max.installation height ≤2000m
Operating humidity 5%-95% RH

Product Features
