DC EV Dynamic Split Charging System PEVC3302

PEVC3302 Cluster DC charging heap solution integrates power distribution, power transformation, and charging cabinet, with an external charging terminal. When charging electric vehicles, the system can flexibly and dynamically allocate output power according to different models and quantities.

Charging Plug

Highlights

Connector

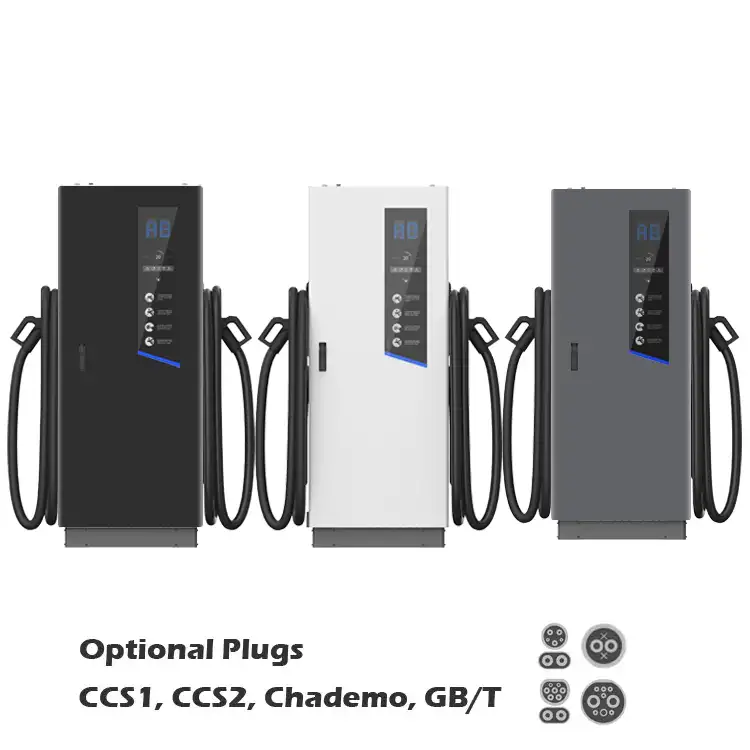

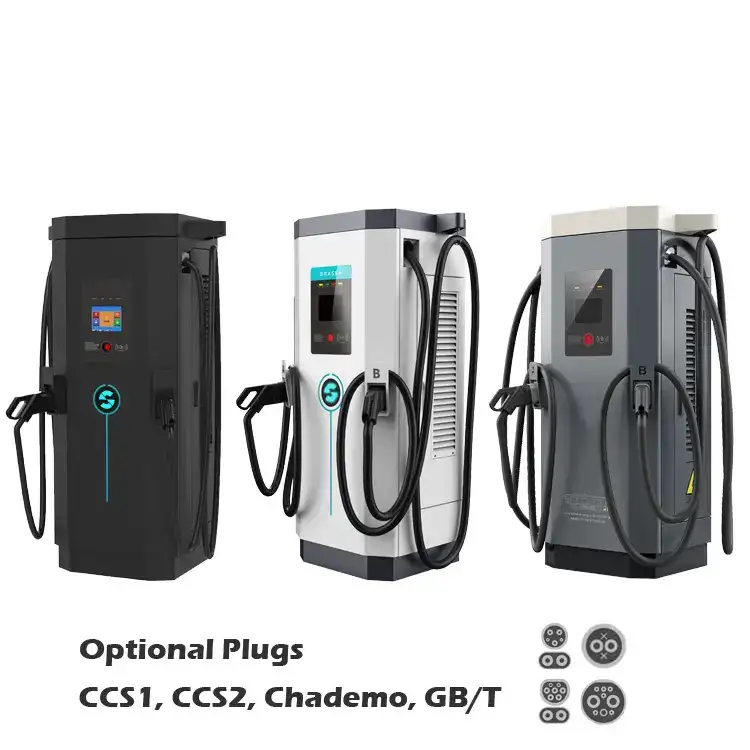

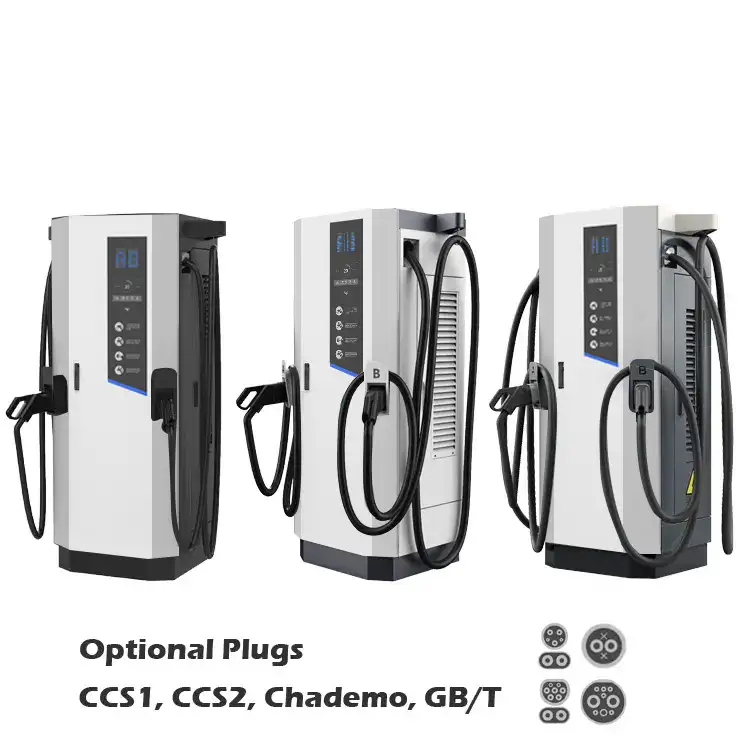

CCS1/ CCS2/ChAdeMO

Output Power

240kW/360kW/480kW

Communication

Ethernet/4G

Precision

Meter With 1% Accuracy

Protection level

IP54, IK10

Start Mode

RFID Card or APP

Mounting

Pole-mount

Charging protocol

OCPP 1.6J

Certificates

CE
Contact sales Download Catalogue

Share:

Product Description

Product Specifications

Specification

Parameters / Model PEVC3302E/U‑RCAB‑480 kW
Input parameters
AC Power Supply 3P + N + PE
AC Voltage 400 VAC ± 10 %
Frequency 50 / 60 Hz
THDi ≤ 5 %
Efficiency ≥ 95 % (load 50‑100 %)
Power Factor ≥ 0.99 (load 50‑100 %)
Output parameters
Number of Output Ports 8 (max)
Voltage 150‑1000 V DC
Output Power 480 kW
Voltage Accuracy ≤ 0.5 %
Current Accuracy ≤ 1 %
Environmental parameters
Operating Temperature ‑20 ℃ ~ +50 ℃
Storage Temperature ‑40 ℃ ~ +75 ℃
Lightning Protection Level C
IP / IK Rating IP55 / IK10
Operating Altitude ≤ 2000 m
Humidity 5 %‑95 % RH (non‑condensing)
Safety protection
Insulation Resistance ≥ 10 MΩ
Impulse Voltage ≥ 2500 V DC
Protection functions
Over Current / Under / Over Voltage √
Short Circuit √
Emergency Stop √
Over‑Temperature Protection √
Surge Protection √
RCD √
Others
Cooling System Forced‑air cooling
Operational Noise Level ≤ 65 dB
Power Distribution Mode Dynamic flexible distribution
Interface Protocol CAN (alternative RS485)
Enclosure Type Galvanized sheet steel
Dimensions (D × W × H) 1600 × 850 × 2000 mm
Weight 700 kg
Compliance IEC 61851‑1 / ‑23 / ‑21‑2

Specification

Parameters / Model PEVC3302E/U‑SPOT‑N1 PEVC3302E/U‑SPOT‑D2
Input parameters
DC Voltage 150‑1000 V DC
AC Power Supply 1P + N
AC Voltage 230 V ± 10 %
Frequency 50 / 60 Hz
Output parameters
Number of Output Ports 1 2
Connector CCS1 / CCS2
Voltage 150‑1000 V DC
Maximum Current per Channel 250 A
Maximum Power per Channel 250 kW
Voltage Accuracy ≤ 0.5 %
Current Accuracy ≤ 1 %
Environmental parameters
Operating Temperature ‑20 ℃ ~ +50 ℃
Storage Temperature ‑40 ℃ ~ +75 ℃
Lightning Protection Level C
IP / IK Rating IP55 / IK10
Operating Altitude ≤ 2000 m
Humidity 5 %‑95 % RH (non‑condensing)
Protection functions
Over / Under / Over‑Voltage √
Short Circuit √
Emergency Stop √
Over‑Temperature Protection √
Surge Protection √
RCD √
Insulation Monitoring √
Reverse Polarity Protection √
Others
HMI 7‑inch touchscreen
Payment Support IC Card / APP
Power Meter Accuracy Class 1.0 energy meter
DC Cable Length 5 m
Operational Noise Level ≤ 45 dB
Communication Ethernet / 4G
Interface Protocol CAN (alternative RS485)
Enclosure Type Galvanized sheet steel
Dimensions (D × W × H) 450 × 200 × 1450 mm
Weight 70 kg 85 kg
Compliance IEC 61851‑1 / ‑23 / ‑24, IEC 62196‑1 / ‑3

Specification

Parameters / Model PEVC3302E/U‑SPOT‑N1
Input parameters
DC Voltage 150‑1000 V DC
AC Power Supply 1P + N
AC Voltage 230 V ± 10 %
Frequency 50 / 60 Hz
Output parameters
Number of Output Ports 1
Connector CCS1 / CCS2
Voltage 150‑1000 V DC
Maximum Current 500 A
Maximum Power 480 kW
Voltage Accuracy ≤ 0.5 %
Current Accuracy ≤ 1 %
Environmental parameters
Operating Temperature ‑20 ℃ ~ +50 ℃
Storage Temperature ‑40 ℃ ~ +75 ℃
Lightning Protection Level C
IP / IK Rating P55 / IK10
Operating Altitude ≤ 2000 m
Humidity 5 %‑95 % RH (non‑condensing)
Protection functions
Over / Under / Over‑Voltage, Short Circuit, Emergency Stop, Over‑Temperature, Surge, RCD, Insulation Monitoring, Reverse Polarity √
Others
HMI 7‑inch touchscreen
Payment Support IC Card / APP
Power Meter Accuracy Class 1.0 energy meter
DC Cable Length 5 m
Operational Noise Level ≤ 60 dB
Communication Ethernet / 4G
Interface Protocol CAN (alternative RS485)
Enclosure Type Galvanized sheet steel
Dimensions (D × W × H) 450 × 400 × 1600 mm
Weight 120 kg
Compliance IEC 61851‑1 / ‑23 / ‑24, IEC 62196‑1 / ‑3

Product Features

Split design

Flexible distribution of power between terminals,The power cabinet covers a small area, and the charging terminal can be flexibly deployed and installed near the parking space, with low noise.

7 Inch LCD Display

Straightforward user interface with 7 inch panel,which display the real-time charging status,including time, voltage, current, power and temperature.

Simultaneous charging output

Multiple charging terminals charge simultaneously,smart Charging model to adjust the power loading,Load sharing to ensure the best utilization.

Easy to install and use

The installation process is simple, payment is convenient and fast, supports mobile application software or IC card swiping. Fully compatible with all EV in the market.

Established Trust and Proven Reliability in Charging Technology

Extensive Experience in Major Projects

Our track record speaks for itself. With years of expertise in implementing large-scale projects across the globe, we bring a wealth of practical knowledge and proven solutions to your doorstep. Our seasoned professionals are equipped to handle the complexities of any size project, delivering excellence every time.

Innovation and Technological Prowess

At the heart of our operation lies a commitment to technological innovation. We pride ourselves on our in-house research and development, producing cutting-edge charging technologies that lead the market. Our solutions are born from a fusion of advanced science and practical application, ensuring you benefit from the latest advancements in EV charging.

Manufacturing Capacity and Excellence

Our state-of-the-art manufacturing facilities are the backbone of our promise to you. Boasting impressive production capabilities, we ensure a seamless transition from design to delivery. Our plants operate with precision and efficiency, allowing us to meet demands swiftly and scale operations as needed, without compromising on quality.

Global Presence and Local Support

With a network of overseas branches, as evidenced by our locations from Turkey to Southeast Asia, we’re more than just a global brand – we're a local partner. Our international footprint enables us to provide you with local support and services, ensuring that wherever you are, a Pilot X Piwin office isn't far away. We're local everywhere, bringing global expertise to your local community.

Tested and proven in the harshest of conditions.

Weather scenes
Customizable Branding

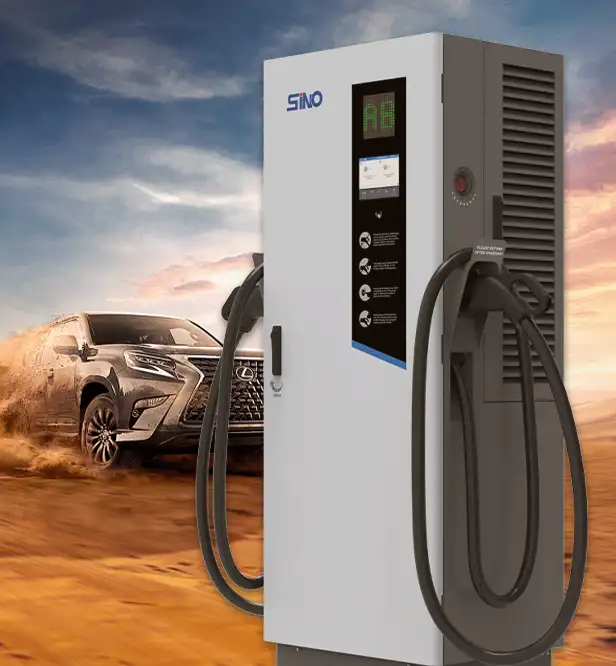

Scorching heat

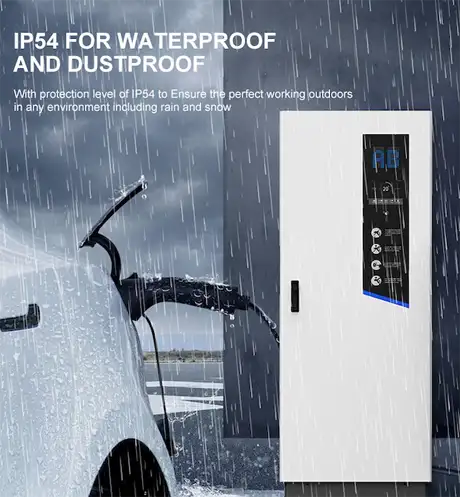

Rainy Day

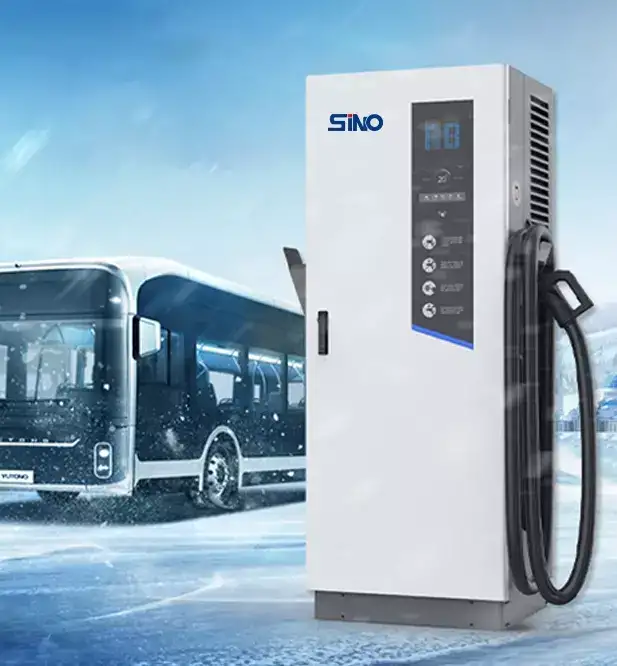

Snowy day
