Custom DC Fast EV Charging Points – Quick Electric Vehicle Charger

Discover unparalleled efficiency with our Level 3 DC EV Charging Stations — the pinnacle of speed in electric vehicle charging technology. Offering a versatile fit for nearly any electric vehicle, these powerful 60 kW charging units come equipped with intelligent features like automatic full charging, fixed power settings, limited charging amounts, and scheduled timing. Safety is prioritized with built-in overcharging and surge protection, all available at an attractive price point from our company.

Charging Plug

Customization Options

Charging Plug

Optional plug to meed country standardsGuns or 2 Guns (CCS1,CCS2,Chademo,GBT,AC Optional)


Customized Logo put on shell by laseron lCCB box or cable head

Exterio & Cable Length

Customized shapes or colors and cable lenath tomatch any architectural style and your needs.

Additional Feature

7Kw-480Kw charging power option/ Chargingpayment system/Energy and money saving evcharging solutions/Floor stand or wall mounted,.etc


Product Description

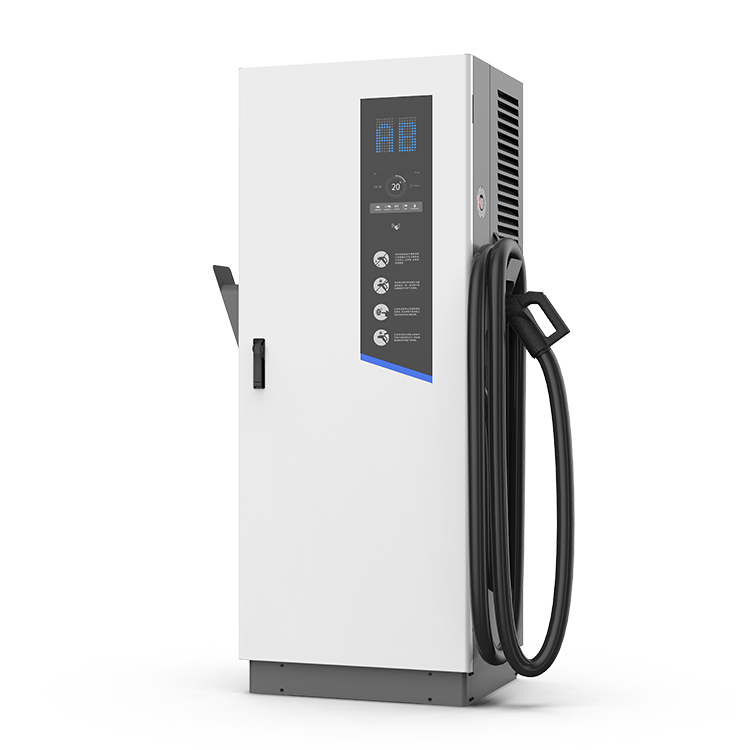

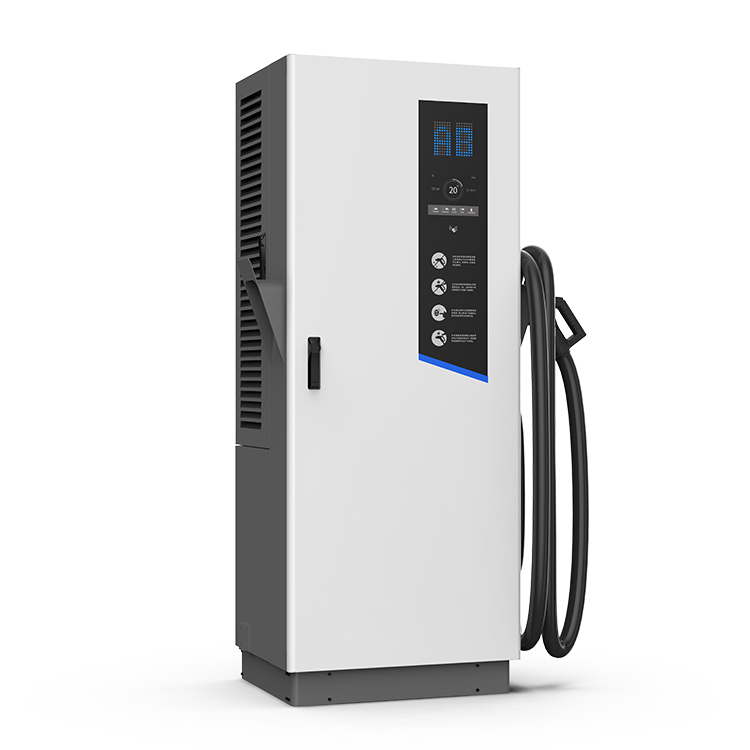

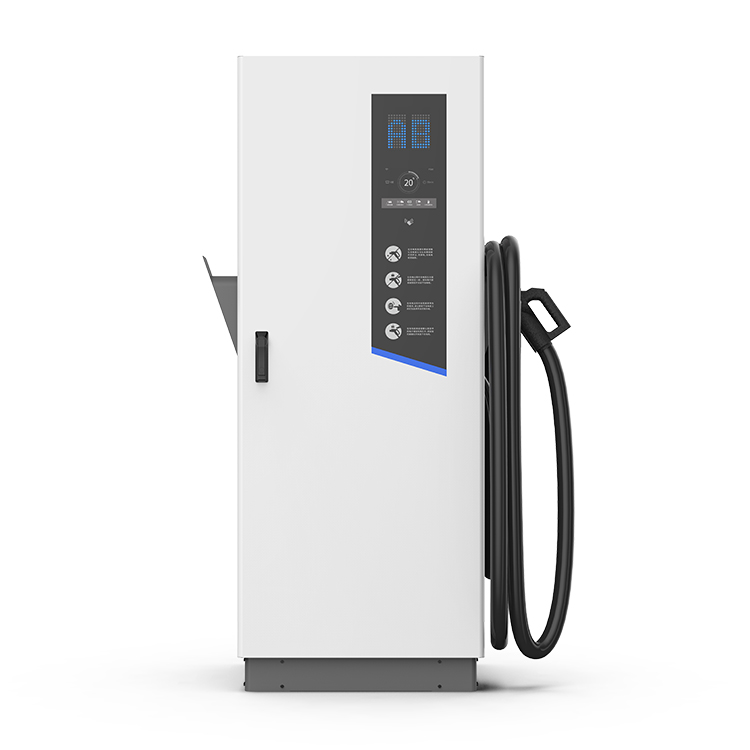

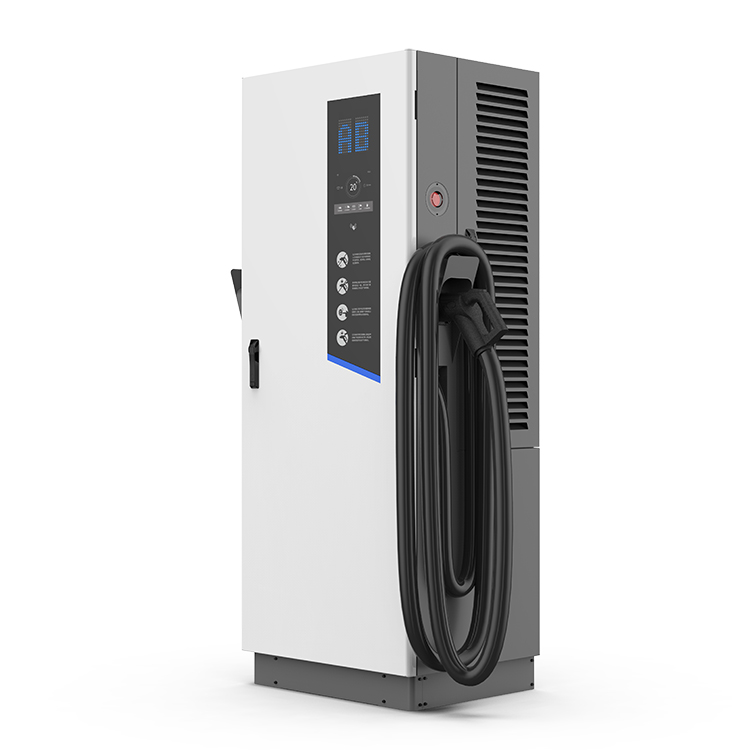

Experience the fusion of speed and versatility with our 60 kW DC Single-Gun Fast Charging Station, engineered to meet the dynamic needs of electric vehicles. This state-of-the-art charging pillar is designed to deliver power rapidly, offering an 80% charge in just minutes and is adaptable to a broad spectrum of EVs thanks to its multi-protocol compatibility with CCS1, CCS2, and CHAdeMO standards.

Key Features:

· Adaptable Connectivity: Whether integrated into a network or functioning independently, our charging station provides the flexibility to fit your operational model.
· User Authentication: Enhanced with RFID and App capabilities, it simplifies user identification and management, ensuring a secure and personalized charging session.
· Intelligent Charging: Automated full charging, fixed power output, and timing features, along with load balancing, make for a smart, efficient energy delivery.
· Superior Safety: Safety isn’t an afterthought; with multiple protections, we guarantee a secure charging environment for every user.

Product Specifications


Power Specifications
Input Connection 3-Phase : 3P+N+PE
Input Voltage 400Vac ±10%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc – 1000Vdc
Max. Output Current 200A( 250A Optional)
Rated Power 60kW – 160kW


User Interface & Control
LCD Display 7″ Color Touch Screen( 12″ Customization )
User Authentication RFID( ISO/IEC 14443)( APP/ Credit Card Customization )
LED Indicator Green/Blue/Red
Charger Connector CCS2 ( CCS1 / CHAdeMO Optional )
Number of Charging Interface 1 or 2
Energy Measuring DC meter, with 1% accuracy


Backend Ethernet (4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 J (OCPP2.x Coming soon)


Residual Current Device Yes
Internal Fuse Yes
Electrical Protection “Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge


Operating Temperature -30℃ – +50℃
Storage Temperature -40℃ – +75℃
Operating Humidity Max. 93% RH, Non-Condensing
Operating Altitude ≤2000m
IP, lK Level IP54, IK10
Cooling Method Fan Cooling

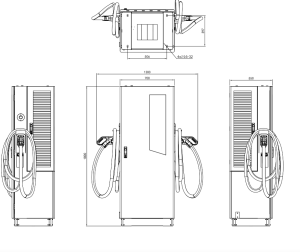

Product Dimension 700mm*550mm*1800mm( W*D*H )
Package Dimension 950mm*720mm*1950mm( W*D*H )
Charging Cable Length 5m ( Customizable )
Weight 363kg( Net ) / 380kg( Gross )
Mounting Free Standing


Certificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
Safety CE

Product Features

Broad Compatibility

Our DC Fast Charging Station meets diverse needs with multi-standard support for CCS1, CCS2, and CHAdeMO, facilitating rapid charging for a wide range of electric vehicles.

User-Friendly Operation

Equipped with a 7-inch color touchscreen and options for RFID/App user identification, our station offers an intuitive and accessible experience for smart charging and load management.

Safety and Efficiency

Designed for efficiency with over 95% charging capability and a power factor of ≥ 0.98, our stations also prioritize safety with multiple protection features against overcharging and surges.

Flexible Applications

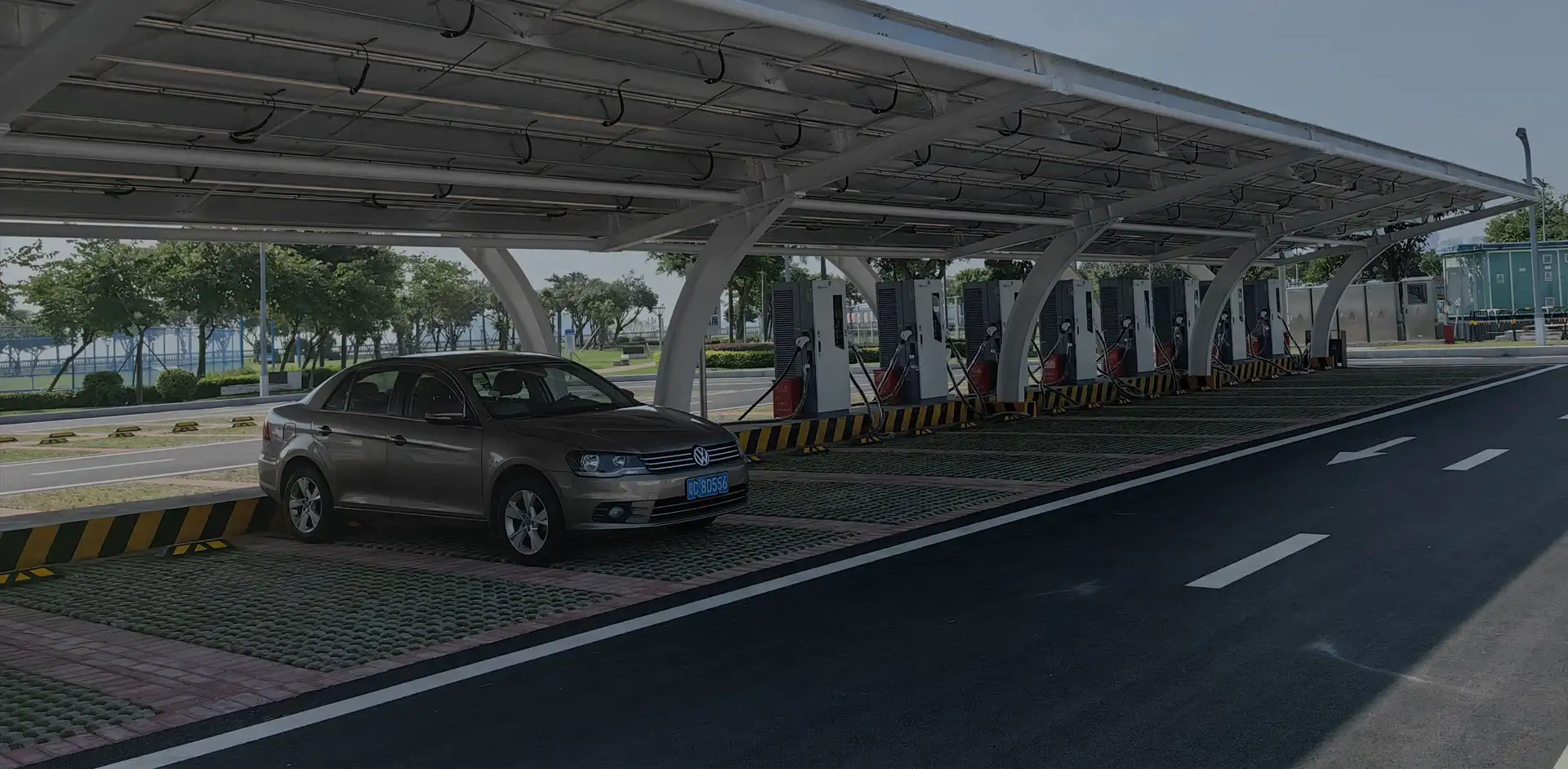

With customizability and suitability for various environments, from EV bus stations to commercial fleets, our charging station is versatile for both indoor and outdoor installations.
