Pilot Business AC EV Charger PEVC2201 from 3kW to 22kW

PEVC2201 is a basic wall-mount single/three-phase AC charger.It's easy to install, stable in performance, and provides complete protection function. The 4.3 inch LCD display can show the charging status, user-friendly. It supports 4G/ Ethernet/ WiFi communication.

Charging Plug

Customization Options

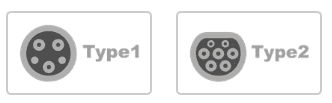

Connector

Type 2, Type 1

Output Power

7kW, 11kW or 22 kW

Communication

4G/ Ethernet/ WiFi

Precision

accuracy Class 1 metering

Protection

IP55 waterproof and dustproof

Start Mode

Charging via QR code scanning, RFID card

Mounting

Wall-mount/Pole-mount

Charging Protocol

OCPP-1.6JSON

Certificates

CB, CE, TUV
Contact sales Download Catalogue

Share:

Product Description

Product Specifications

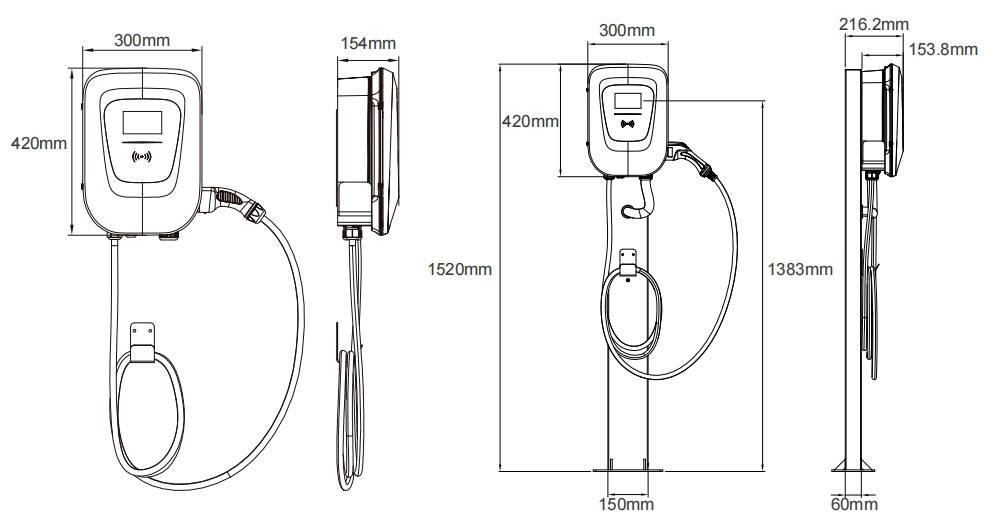

Space-efficient 22KW Type 2 AC EV Charger with dimensions 420x300mm, side profile 154x1520mm, and cable length 1383mm, featuring a user-friendly 4.3-inch display.

Specification

Parameters / Model 1‑Phase 3‑Phase
Input parameters
Power Supply 1P + N + PE 3P + N + PE
Rated Voltage 230 VAC ± 10 % 400 VAC ± 20 %
Frequency 50 / 60 Hz
Output parameters
Number of Output Ports 1
Output Voltage 230 V 400 VAC ± 20 %
Output Current 16 A / 32 A
Output Power 3 kW / 7 kW 11 kW / 22 kW
Protection functions
Over‑ / Under‑Voltage Protection √
Over‑Current Protection √
Short‑Circuit Protection √
Lightning Protection √
Emergency Stop Protection √
Leakage Protection (RCD Type A + 6 mA DC) √
Basic parameters
Electric Energy Measurement Accuracy Class 1.0 energy meter
Display Mode 4.3‑inch LCD
Plug Cable Length 5 m
Communication Ethernet / Wi‑Fi / 4G LTE
Protocol OCPP‑1.6 (JSON)
Insulation Resistance 1000 V DC ≥ 10 MΩ
Dielectric Strength AC 2500 V ≤ 10 mA (Input / Output → Ground)
Connector Type (IEC 62196‑2) Type 2
Standards IEC 61851‑1, IEC 62196‑1/‑2
Environmental parameters
Operating Temperature ‑30 ℃ ~ +60 ℃
Storage Temperature ‑40 ℃ ~ +80 ℃
Altitude ≤ 2000 m
Humidity ≤ 95 % RH (Non‑condensing)
EMC performance
Electrostatic Discharge Immunity Level 3
RF Electromagnetic Field Immunity Level 3
Electrical Fast Transient Burst Level 4
Surge Impact Immunity Level 3
Structural parameters
Shell Color Metallic Grey
Shell Material (PC + ABS) Blend
Installation Method Wall‑mount / Pole‑mount
Dimensions (W × H × D) 300 × 420 × 153.8 mm
Protection Level IP55

Product Features

Rapid Charging

Experience the pinnacle of efficiency with our AC EV Charger, designed to rapidly power your electric vehicle. With options for 7KW, 11KW, and 22KW charging, this versatile device can fully charge your car in under three hours, ensuring that you’re ready to cover up to 100 miles on a single charge.

Sleek Design and Display

The AC EV Charger boasts a modern, ergonomic build with a compact footprint of 420x300mm. A well-defined 4.3-inch LCD display provides clear information at a glance, merging functionality with a touch of sophistication for your charging station.

Installation Flexibility

Customize your charging setup with the choice of wall-mount or pole-mount options. Our charger’s adaptable design accommodates various installation spaces, offering ease and convenience for both indoor and outdoor applications.

Safety Assurance

Prioritize safety with our charger's built-in RCD Type A and 6mA DC leakage protection. Certified with TUV and featuring an IP55 rating, this charger is not just a powerhouse but also a guardian, ensuring each charging session is secure and reliable.

Established Trust and Proven Reliability in Charging Technology

Extensive Experience in Major Projects

Our track record speaks for itself. With years of expertise in implementing large-scale projects across the globe, we bring a wealth of practical knowledge and proven solutions to your doorstep. Our seasoned professionals are equipped to handle the complexities of any size project, delivering excellence every time.

Innovation and Technological Prowess

At the heart of our operation lies a commitment to technological innovation. We pride ourselves on our in-house research and development, producing cutting-edge charging technologies that lead the market. Our solutions are born from a fusion of advanced science and practical application, ensuring you benefit from the latest advancements in EV charging.

Manufacturing Capacity and Excellence

Our state-of-the-art manufacturing facilities are the backbone of our promise to you. Boasting impressive production capabilities, we ensure a seamless transition from design to delivery. Our plants operate with precision and efficiency, allowing us to meet demands swiftly and scale operations as needed, without compromising on quality.

Global Presence and Local Support

With a network of overseas branches, as evidenced by our locations from Turkey to Southeast Asia, we’re more than just a global brand – we're a local partner. Our international footprint enables us to provide you with local support and services, ensuring that wherever you are, a Pilot X Piwin office isn't far away. We're local everywhere, bringing global expertise to your local community.

Tested and proven in the harshest of conditions.

Weather scenes
Customizable Branding

Scorching heat

Rainy Day

Snowy day

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support

Profitable

Drive revenue from EV chargers by setting charging fees or cross-selling other products and services while your customers charge. Offering EV charging in commercial spaces extends drivers’ dwell time, boosts spending, and engages more with your business.

Cost Savings

Commercial charging powered by cheaper electricity, provides a cost edge over traditional fuels. This slashes carbon emissions, waste management, cleaning costs, and carbon-related taxes.

Boost Visibility

Let EV charging stations appear on public charging maps, not only catering to current customers but attracting new clients who discover your business online.

Compatible

Enable drivers to charge regardless of the network or vehicle thanks to charging stations built on OCPP that are compatible with every EV.

Efficiency

Pilot designs to reduces costs associated with transport, installation, operation and maintenance to minimize total cost of ownership. With available power up to 480 kW, each dispenser can charge Max.8 EVs simultaneously, offering cost-efficient installation per kW and charging spot. Maintenance costs are reduced by remote monitoring and service.

Reliable

EV chargers for business are designed to be weatherproof, shockproof, and can withstand 24/7 charging.

Click for case support
