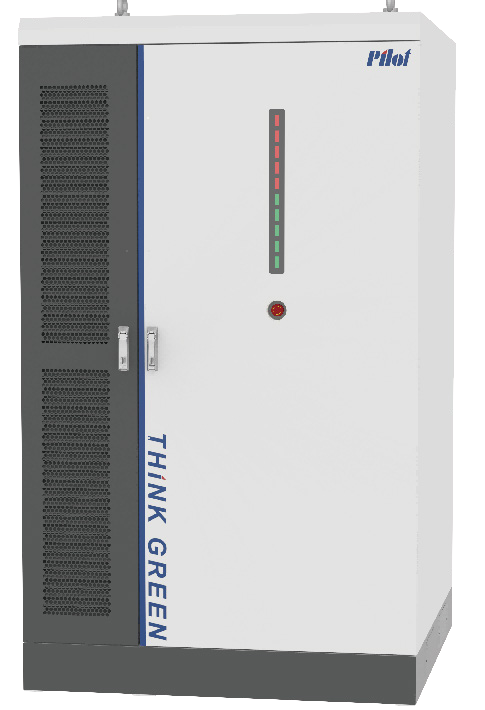

BESS Cabinet All in one 250KW/836KWH

Based on the DC1500V outdoor liquid-cooled energy storage cabinet, the DC1500V distributed energy storage system can be flexibly configured and matched with a prefabricated step-up substation to adapt to high-voltage grid-connected application scenarios. Up to ten integrated energy storage cabinets can be used in parallel.

Supports transportation with battery modules

Customization Options

Power Optional

3344 kwh, 4180 kwh, 5016 kwh Pilot has specially developed 3 models based on market demand for customers to choose from. If your project requires customization, please contact us immediately.

Logo

Print custom logos on energy storage cabinet housings via laser marking
Request a Quote Download Catalogue

Share:

Product Description



Highlights

+ Plug & Play, All-in-One, AC-coupled solution 836 kWh battery with advanced thermal management

+ LFP cells from top class supplier,assurance of long life and maximum safety

+ Active equalization technology adopted in BMS, for maximum safety and longevity

+ AI equipped, energy management system (EMS) with remote monitoring& maintenance service

+ Economic & Efficient, achieving an impressive 90% energy conversion efficiency

+ Fully independent Active Fire Suppression system

+ Outdoor IP54 enclosure for any location Installation and relocation friendly, designed for forklift handling

Product Specifications

AIl in one BESS Cabinet 250KW/836KWH

Parameters/Model PL-EL-250/836
Battery parameters
Cell and Capacity LiFePO₄-314Ah

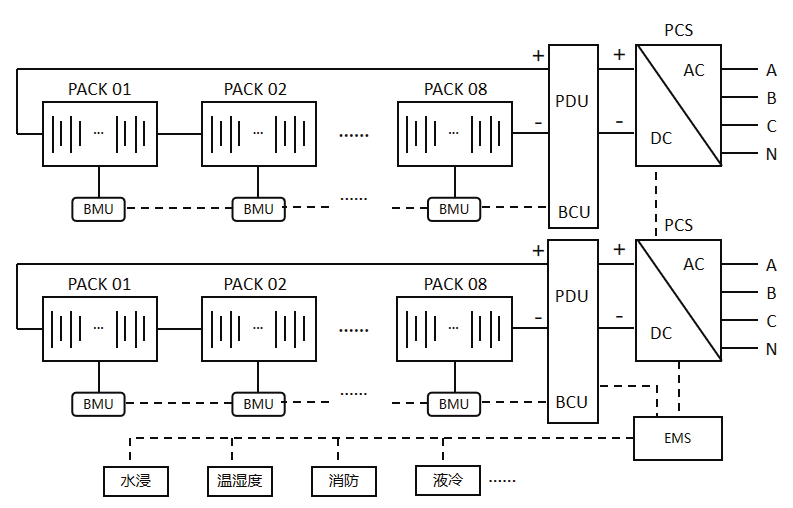

Battery module type 1P52S*8S*2P
System capacity range 836 kWh
AC side On-grid parameters
Grid type 3P4W
Rated power 250kW
Rated voltage AC 400V
Grid voltage range ±15%
Freq.range 50 Hz
Rated current 360A
Harmonics ≤3%(@rated power)
AC side Off-grid parameters
Load connection 3P4W
Rated output power 250kW
Freq.range 50(±0.2)Hz
Rated voltage AC 400V
General parameters
Dimensions (W*H*D)  2650mm*2500mm*1400mm
Weight 8.6 tons
Ingress protection IP65(battery compartment)IP54(electrical compartment)
Cooling Liquid cooling
Firefighting system Aerosol+Perfluorohexanone PACK-level fire protection +active early warning
Anti-corrosion grade C3
Relative humidity 0-95%(no condensing)
Operating temp.* -20℃~50℃
Operating altitude** <2000m
Noise emmision ≤75dB
communication interface RS485, Ethernet
protocol Modbus RTU, Modbus TCP/IP
warranty Battery PAck for 5years , the other components for 2 -year warranty

*The system will be derated when the ambient temperature exceeds 45℃ .

** The system will be derated when the altitude is between 2000m and 3000m.

Product Features

Economically efficient

Energy efficiency>90%@0.5C Smart liquid cooling,temp. difference<3°C

Safe and reliable

High protection level IP55 (Liquid cooling Pack IP67) 4-in-one fire detectors Pack-level fire extinguishing, aerosol + Perfluoro

Smart management

Multiple operational strategies Supports on/off-grid switching Cloud-based maintenance, 24/7 continuous monitoring

Highly convenient

Transportation with battery modules assembled Fast deployment Convenient expansion
