Comprehensive Guide to AC EV Chargers: Everything You Need to Know

2024/04/11 By marketing02@kinouwell.com

Weather-resistant Pilot X Piwin AC EV charger mounted on a wall, actively charging a white electric car during a rainstorm.

In the burgeoning era of electric vehicles (EVs), the transition from traditional fuel to electric charging represents not just a shift in energy sources but a complete overhaul of the driving experience.

This comprehensive guide to AC EV Chargers is your beacon through the evolving landscape of electric vehicle charging, designed to illuminate every corner of this critical component of EV ownership. From discerning EV enthusiasts to the newly initiated, you will unearth the ins and outs of AC EV charging, exploring its significance, varieties, advantages, and how to make informed choices regarding their charging solutions. Whether you're contemplating the switch to an electric vehicle, seeking to enhance your current EV charging setup, or simply curious about the technology powering the future of transport, this guide promises to equip you with everything you need to know.

Dive into an ocean of knowledge and emerge with a treasure trove of insights that could redefine your relationship with your vehicle and the environment.

What is an AC EV Charger and Why Does it Matter to You?

At its core, an Alternating Current (AC) Electric Vehicle (EV) Charger is the bridge that connects your electric vehicle to the power grid, enabling the transfer of electricity to your car's battery. Unlike the Direct Current (DC) chargers found at rapid charging stations, AC chargers are often the unsung heroes of daily EV charging, typically installed in homes and public parking areas, offering a more accessible and convenient charging solution for everyday use.

But why does this matter to you? The advent of AC EV charging has revolutionized how we "refuel" our vehicles, turning overnight charging at home or topping up at work into the new norm. This shift has profound implications for your lifestyle, your vehicle's efficiency, and, ultimately, the planet. Here's how:

  • Accessibility: AC chargers make electric vehicle ownership practical and accessible, breaking down barriers to adoption by providing a reliable means of charging at home or work.
  • Convenience: With an AC charger, you can recharge your vehicle's battery overnight, ensuring a full charge at the start of each day, much like charging your smartphone.
  • Cost-effectiveness: Charging your EV with an AC charger at home is often more affordable than relying on public or DC fast-charging stations, offering significant savings over time.
  • Sustainability: AC EV charging, particularly when paired with renewable energy sources, offers a cleaner, more sustainable alternative to fossil fuel-based transportation, aligning with global efforts to reduce carbon emissions and combat climate change.

In understanding what an AC EV Charger is and its significance, you're not just acquainting yourself with a piece of technology but embracing a cornerstone of the future of transportation. This knowledge empowers you to make informed decisions about EV ownership, charging options, and how you can contribute to a greener, more sustainable world.

Understanding the Working Principle of AC EV Chargers

The operation of AC EV chargers is rooted in a simple yet transformative principle, converting alternating current (AC) from the electrical grid into direct current (DC) that can be stored in an electric vehicle's battery. This conversion is pivotal, as the batteries within electric vehicles are designed to store and utilize energy in DC form. However, the intricacies of how this conversion occurs and the role of the AC EV charger in the process are essential knowledge for any electric vehicle owner or enthusiast.

At its heart, the AC EV charging process involves three primary components: the AC power source, the charger itself, and the vehicle's onboard converter. Here's a step-by-step breakdown of how these components interact during the charging process:

  1. AC Power Source: The journey begins with the AC power from the grid, which is the form of electricity supplied to most homes and businesses. This AC power is characterized by its ability to change direction periodically, a feature that makes it efficient for transmission over long distances.
  2. AC EV Charger: Often misunderstood as the device that directly charges the EV’s battery, the AC EV charger actually serves as the initial connection point for the electricity. It safely delivers AC power to the vehicle, ensuring that the right amount of electricity is supplied without overloading the vehicle's electrical system. The charger is equipped with various safety features, such as ground fault circuit interrupter (GFCI) protection and overcurrent protection, to safeguard both the vehicle and the user during charging.
  3. Onboard Converter: Once the AC power reaches the vehicle, it's the vehicle's onboard converter (or onboard charger) that takes center stage. This converter transforms the AC power into DC power suitable for the vehicle’s battery. It's a crucial piece of technology that dictates the charging speed, as its capacity (measured in kilowatts, kW) limits how quickly the battery can be charged. The efficiency and capacity of this converter play a significant role in the overall charging experience, determining how fast the battery can be replenished and the vehicle made ready for use.

Understanding the working principle of AC EV chargers reveals the elegance and efficiency of electric vehicle charging technology. It underscores the importance of the onboard converter in the charging process and highlights the role of the AC EV charger in safely and efficiently delivering power to the vehicle. This knowledge not only demystifies the charging process but also emphasizes the sophistication and innovation driving the transition to electric mobility.

Exploring the Different Types of AC EV Chargers

Diving deeper into the world of AC EV Chargers unveils a spectrum of options, each designed with specific users in mind. Whether you're a daily commuter, a business on the lookout for customer-friendly solutions, or an avid traveler, understanding these distinctions is key to optimizing your electric vehicle experience.

Household AC EV Chargers: Your Home Charging Solution

Modern Pilot x Piwin AC EV Charger connected to a charging cable, featuring a simplistic design with an intuitive interface.

The Case for Convenience

The cornerstone of any EV owner's charging strategy is their home charging setup. Household AC EV chargers, typically rated between 3.7 kW and 22 kW, can turn any regular parking spot into a personal charging station. The beauty of these chargers lies in their simplicity and the autonomy they provide.

A Closer Look

Consider Sarah, who installed a 7 kW charger in her garage. For her Tesla Model 3, this setup means going from 20% to 80% charge overnight — around 8 hours. It’s not just about the convenience; it’s also economically wise. Charging at home can be significantly cheaper than using public chargers, especially if you charge overnight during off-peak electricity hours.

Extended Insight

In regions where renewable energy sources are available, households can further reduce their carbon footprint by integrating solar panels with their home charging setup. This not only diminishes the environmental impact but can also offer even greater savings on energy costs.

Public AC EV Chargers: Powering Your Journey

Bridging Gaps in Urban and Rural Landscapes

Public charging infrastructure is vital for supporting the everyday use of electric vehicles, especially in dense urban areas where private parking is scarce. These chargers are strategically located in public parking lots, shopping malls, and near restaurants to provide convenient charging solutions for EV owners on the go.

Expanding Networks

The growth of public AC charging stations has been exponential. For example, in Europe, initiatives like the "Green City" project aim to install thousands of public AC chargers, ensuring EV owners are never more than a few kilometers away from the nearest charging point.

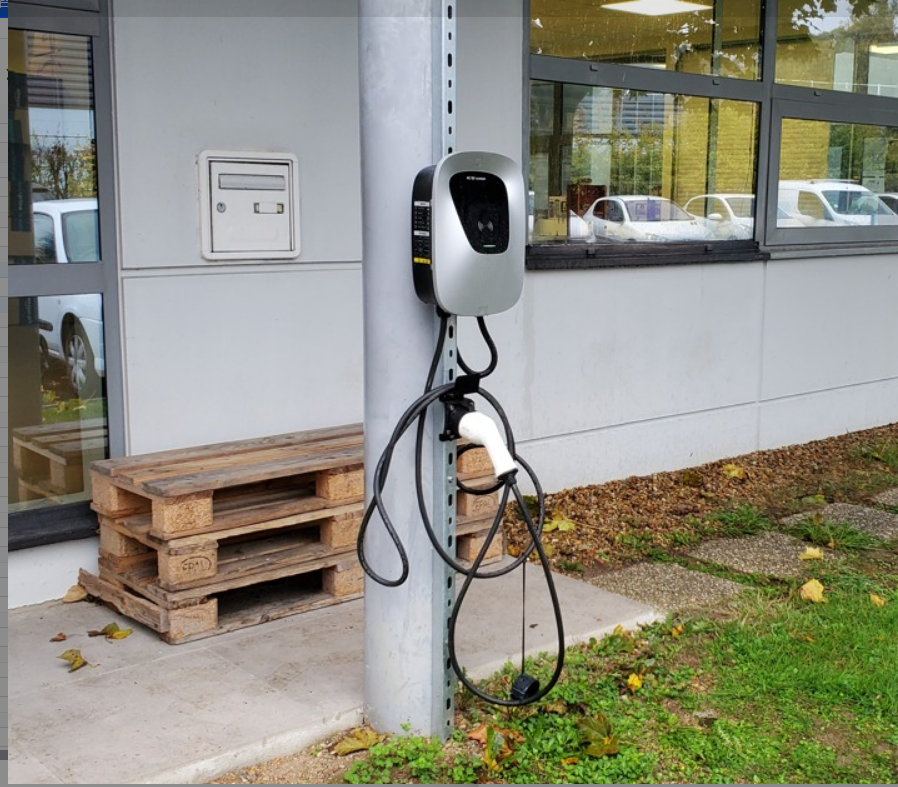

Outdoor installation of a Pilot X Piwin AC EV Charger mounted on a column outside a commercial building, with the charging cable neatly hung.

A Day with Public Chargers

Imagine you're on a day-long shopping spree. With access to public AC EV chargers, you can plug in your vehicle upon arrival and have a fully charged battery by the time you're done — no range anxiety, no time wasted searching for a charging station.

Portable AC EV Chargers: Charge Anywhere, Anytime

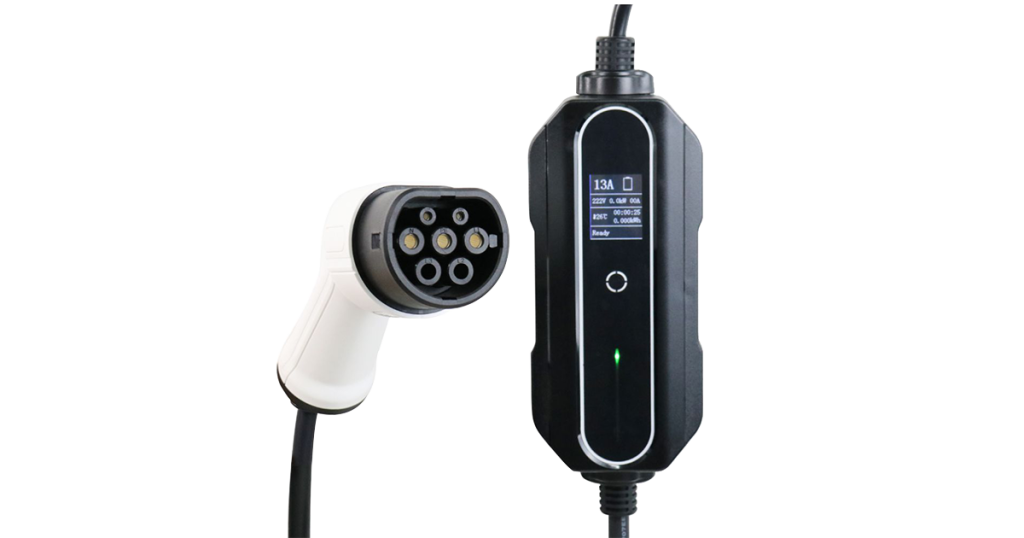

Portable Pilot x Piwin AC EV charger with an LED display and Type 2 connector, isolated on a transparent background.

The Ultimate in Charging Flexibility

Portable AC EV chargers change the game for EV owners who value flexibility. These chargers are compact, easy to use, and can be connected to standard household outlets, making them perfect for travel, visits to friends and family, or as a backup charging option.

Real-World Applications

Consider the scenario of a family vacation in a remote cabin. A portable charger ensures that your EV can be charged using a standard 110V outlet, providing peace of mind and eliminating the stress of finding a public charging station in unfamiliar territory.

By the Numbers

While slower than their fixed counterparts, providing roughly 2-5 miles of range per hour of charging, the convenience of portable chargers cannot be overstated. They represent freedom and preparedness, essential qualities for the modern EV owner.

In Summary

The landscape of AC EV Chargers is rich and varied, designed to meet a broad spectrum of needs and preferences. From the practicality of household chargers and the strategic placement of public chargers to the indispensable convenience of portable chargers, there's a solution for every scenario. Understanding these options not only enhances your EV experience but also supports the transition to a more sustainable, electric-powered world.

The Excellent Advantages of AC EV Chargers Explained

In the evolving landscape of electric vehicles (EVs), AC EV chargers stand out for their blend of innovation, safety, reliability, and cost-efficiency. These chargers are not just accessories; they are vital components that enhance the EV ownership experience. Let’s delve deeper into the myriad advantages these chargers bring to the table, painting a comprehensive picture of their role in the electrification of transportation.

Efficient Charging: Speed Meets Convenience

AC EV chargers are tailored to fit into the daily life of an EV owner seamlessly. They offer a practical and flexible charging solution that caters to various needs, from overnight charging to quick top-ups during the day.

The average electric vehicle requires approximately 30 kWh of electricity to travel 100 miles. With a 7 kW AC home charger, achieving this range requires roughly 4.3 hours of charging time. In contrast, a standard 2.3 kW charger would need about 13 hours to provide the same range, showcasing the efficiency gains of higher-capacity AC chargers.

Consider Alex, who owns a Nissan Leaf and uses a 7 kW AC charger at home. Alex’s daily commute is about 40 miles. By plugging in his Leaf for just over an hour and a half each evening, he ensures his vehicle is always ready for the day ahead, demonstrating the seamless integration of AC charging into daily routines.

Comprehensive Security Protection: Safety First

AC EV chargers are designed with an array of safety features to protect against electrical hazards, ensuring the well-being of users and the integrity of the vehicle and charging infrastructure.

A study conducted on EV charging safety found that modern AC chargers with integrated safety features reduced the risk of electrical fires by over 95% compared to older or non-compliant devices.

Electric vehicle plugged in with a Pilot x Piwin AC EV charger during a snowy day, demonstrating the charger's durability in winter conditions.

Emily, who recently installed an AC charger with advanced safety features, such as ground-fault protection and thermal monitoring, shared her peace of mind knowing that her family and home are protected from the potential risks associated with electric charging.

Unmatched Stability for Reliability You Can Trust

The stability provided by AC EV chargers is crucial for maintaining battery health and extending the lifespan of EV batteries, offering a dependable charging solution.

Batteries charged primarily with AC power show a degradation rate of approximately 1.5% per year, compared to 2.5% for batteries frequently charged with DC fast chargers, highlighting the benefit of AC charging for battery longevity.

John's Tesla Model S, which he charges exclusively with a home AC charger, exhibits superior battery health after three years of use, maintaining over 98% of its original range capability. This contrasts with fast-charged EVs, which often show quicker degradation.

The Cost Advantage: Quality Charging at an Affordable Price

The economic benefits of AC EV chargers are significant, offering affordable installation and operational costs without sacrificing quality or performance.

Charging TypeInitial Setup CostAverage Annual Operation Cost
AC Home Charger (7 kW)$500 - $1,000$300 - $400
DC Fast Charger$10,000 - $40,000$1,200 - $1,500

Sarah, utilizing a 7 kW AC home charger, spends on average $350 annually on charging costs, far less than the operational costs associated with public or fast charging options. Her investment in an AC charger paid off in less than two years, thanks to these savings.

The exploration into the advantages of AC EV chargers reveals a compelling case for their adoption. Through efficient charging practices, enhanced safety measures, stability that preserves battery health, and undeniable cost benefits, AC chargers stand out as a key component of the EV landscape. The data and examples provided underscore the tangible impacts of these advantages, showcasing the vital role AC EV chargers play in the transition to sustainable transportation.

Your Ultimate AC EV Charger Buying Guide

Purchasing an AC EV charger involves more than just picking a device off the shelf; it's about finding the right match for your electric vehicle (EV), lifestyle, and charging needs. This detailed guide aims to address common concerns and requirements, helping you make a well-informed decision that enhances your EV ownership experience.

Understanding Charging Power and Speed: What You Need

Home Charging vs. Commercial Charging: For home users, a balance between charging speed and practicality is key. A 7.4 kW home charger is ideal, offering overnight charging without necessitating a hefty upgrade to your home’s electrical infrastructure. Commercial users, however, should consider chargers from 11 kW to 22 kW to accommodate the higher throughput demands of public or fleet charging stations, allowing for multiple vehicles to be charged in a day.

Tailoring to Your Lifestyle: Evaluate your daily mileage and vehicle's battery capacity to choose a charger that minimizes downtime. If you drive extensively, a faster charger might be worth the investment. Conversely, if your EV serves for shorter commutes, a standard home charger could suffice, offering savings on energy bills.

Interface and Compatibility: Ensuring a Perfect Match

Connector Compatibility: Ensuring that the charger’s connector type matches your EV’s receptacle is crucial. With Type 2 connectors becoming increasingly standard, they offer a future-proof option for new EV owners. However, owners of older models with Type 1 connectors must ensure compatibility or consider adapters.

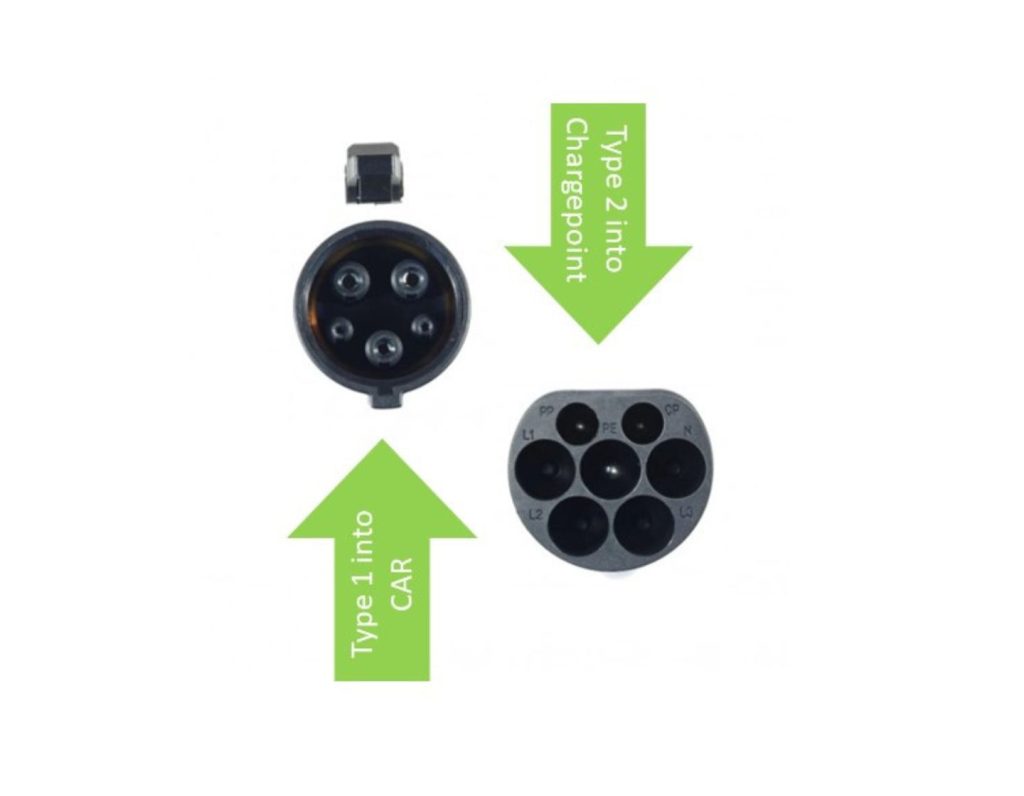

Type 2 EV charging connector with directional arrows showing compatibility for both car and chargepoint sides.

Smart Charging Features: Many modern AC EV chargers come equipped with smart features that allow for charging schedule management, optimizing energy consumption based on utility rates, and even remote monitoring through mobile apps. These features not only offer convenience but can also lead to significant savings over time.

Choosing the Right Brand: Quality and Reliability

Why pilot x piwin Stands Out: As an autonomous research, development, and manufacturing listed company, pilot x piwin embodies innovation and reliability. Our commitment to quality is evident in our high consumer trust ratings and the robustness of our products, designed to serve both personal and commercial charging needs efficiently.

Long-Term Value: Choosing a brand like pilot x piwin ensures you're investing in a product that is backed by extensive research and a proven track record in the EV charging industry. Our chargers are built to last, offering you peace of mind and long-term savings.

Security and Certification: Your Safety Checklist

Prioritizing Safety: An essential aspect of selecting an AC EV charger is the inclusion of comprehensive safety features. This includes not just basic protections like overcurrent and ground fault interruption but also advanced diagnostics to preemptively address potential issues, ensuring the safety of your vehicle and premises.

Certification Assurance: Opting for a charger that meets stringent industry standards and certifications guarantees that the product has undergone rigorous testing for safety and efficiency. Look for certifications from recognized bodies, which affirm the charger's compliance with international safety norms.

After-Sales Service and Technical Support: What to Expect

Beyond the Purchase: Excellent after-sales service is indicative of a brand’s confidence in its product and commitment to customer satisfaction. With pilot x piwin, customers gain access to a comprehensive support system, including installation guidance, maintenance advice, and a responsive customer service team ready to address any inquiries or issues.

Technical Support and Warranty: A robust warranty and accessible technical support are critical, especially for commercial operations where uptime is crucial. Pilot x piwin’s commitment to quality is further demonstrated by our industry-leading warranty terms and our dedicated technical support team, ensuring your charging infrastructure operates smoothly at all times.

Maximizing Efficiency with Your AC EV Charger: Pro Tips

Investing in an AC EV charger is just the first step toward efficient and responsible electric vehicle ownership. To truly maximize the potential of your charger, it’s crucial to understand the best practices for usage, care, and maintenance. Below are professional tips that ensure you get the most out of your AC EV charger.

The Right Way to Use Your AC EV Charger

Using your AC EV charger efficiently isn't just about following a set of instructions; it's about understanding how your charging habits impact the performance and lifespan of your electric vehicle's battery.

Start with Compatibility:

Before you begin, confirm that your EV’s charging requirements align with your charger's output. It's not about the speed; it’s about the right fit. Most EVs are equipped to handle a range of charging outputs, so using the correct setting is more beneficial than simply opting for the maximum output.

Smart Charging Habits:

Your charging times should work with your lifestyle and the grid's demands. Scheduling your charging sessions for off-peak hours can reduce the strain on your wallet and the energy grid. It's akin to watering your garden in the early morning or evening to avoid evaporation — it's all about being resource-wise.

Stay Connected — But Not Too Much:

Letting your EV charge overnight is often the most convenient option. However, keeping an eye on the charging process is good practice. Many EVs now come with companion apps that track your charging progress, allowing you to unplug your vehicle once it's sufficiently charged. This habit is about respecting the technology and ensuring you don't overburden the battery.

Hand holding a smartphone with an app interface for controlling a wall-mounted Pilot x Piwin AC EV charger.

Regularly Reassess Your Charging Approach:

With advancements in EV technology, charging recommendations may evolve. Staying updated with your vehicle manufacturer’s guidelines will help you adapt to new best practices, ensuring your charging routine is as current as the technology itself.

Selecting the Ideal Charging Environment

The environment where you charge your electric vehicle plays a critical role in the efficiency and longevity of your AC EV charger. A well-chosen charging environment not only ensures optimal performance but can also extend the service life of your charger.

Indoor vs. Outdoor Charging:

Indoors, such as in a garage, is often the best choice for setting up your charger. It protects the device from extreme weather conditions, which can affect its efficiency and durability. If you must install the charger outdoors, opt for a location that's sheltered and choose a charger designed to withstand weather fluctuations.

Temperature Considerations:

Chargers perform best in moderate temperatures. Extreme cold or heat can impact the charging speed and battery health. If you live in an area with significant temperature swings, consider an insulated or climate-controlled area for charging.

Ease of Access:

Convenience is key. Place your charger in a location that is easily accessible for daily use without creating obstacles or requiring unnecessary maneuvering. This might mean a dedicated spot in your driveway or a particular side of the garage.

Safety First:

Always ensure that your charging area is free from standing water or any flammable materials. Safety isn't just about the charger itself; it's about its surroundings. Regularly inspect the space for any potential hazards.

Power Supply:

Your charger needs a proper power supply. Professional installation ensures that your charger is connected to an adequate power source with the correct voltage and amperage. An electrician can verify that your electrical system can support your charging needs without overloading circuits.

Future-Proofing:

Finally, consider the future. As technology evolves, so too may your charging needs. Ensure there's enough space to upgrade to a more powerful charger if needed and that your electrical setup has the capacity for potential enhancements.

How to Avoid Overcharging and Prolong Your Battery’s Life

Ensuring the longevity of your electric vehicle's battery is crucial, and one key aspect is to avoid overcharging. Overcharging can lead to reduced battery life and efficiency over time. Here’s how you can prevent it and keep your battery in top health:

Understand Your EV’s Battery Capacity:

Familiarize yourself with the maximum capacity of your EV's battery and its charging thresholds. Most modern EVs will have a built-in mechanism to prevent overcharging, but knowing the capacity can help you set appropriate charging limits.

Utilize Smart Charging Features:

Many AC EV chargers, including those from Pilot X Piwin, come with smart charging capabilities. These allow you to set charging schedules and limits directly through an app or onboard settings, ensuring the charger stops supplying power once the battery reaches a certain level.

Monitor Your Charging Habits:

Pay attention to your daily usage and adjust your charging habits accordingly. If your daily commute only uses up 20% of the battery, it’s unnecessary to charge to 100% every night. Instead, charge your battery to meet your daily needs plus a little extra for unforeseen circumstances.

Maintain Battery Health with Periodic Calibration:

Every few months, allow your battery to charge fully and then run it down to a low level before charging it again. This helps calibrate the battery's charge measurement system and can give you a more accurate reading of your battery's health.

Avoid Extreme Temperatures During Charging:

Charging your battery in very hot or cold conditions can affect the battery's ability to hold a charge. Whenever possible, charge your EV in a temperate environment to help preserve the battery's lifespan.

Keep Firmware Updated:

Manufacturers often release updates that optimize battery health. Regularly updating your EV’s firmware ensures that you benefit from the latest battery management technology.

Maintenance Matters: Keeping Your Charger in Top Condition

To keep your AC EV charger performing at its best, a little upkeep goes a long way. Regular check-ups can prevent small issues from becoming big problems and help maintain the efficiency of your charging station.

Inspect and Clean Regularly:

A simple visual check can catch any potential issues early. Look for signs of damage like frayed wires or loose components, and keep the unit clean from dust and debris which can accumulate and impact performance. A soft, dry cloth will often do the trick for wiping down the charger.

Stay Updated:

Keep your charger’s firmware up to date. Manufacturers like Pilot X Piwin often release updates that enhance functionality or add new features, helping you get the most out of your charger.

Seek Expert Care:

For any technical issues beyond basic maintenance, always turn to a professional. Attempting DIY repairs can be dangerous and might void your warranty.

Consider Placement:

If possible, position your charger in a location that minimizes exposure to extreme weather. This isn’t just about immediate function; it's about long-term care and preventing weather-related wear.

Refer to Your Manual:

Your user manual is your best friend when it comes to maintenance. It provides model-specific guidelines to help you understand the maintenance schedule and procedures.

Comprehensive Guide to AC EV Chargers: FAQs

Q: What is the difference between AC and DC charging for electric vehicles?

A: AC (Alternating Current) charging is typically used for home and public charging stations, providing a slower, steadier charge ideal for overnight use or several hours of charging. DC (Direct Current) charging, on the other hand, is used for fast charging stations along highways and in commercial settings, offering a rapid charge that can significantly replenish the battery in under an hour. The main difference lies in the charging speed and the infrastructure required for installation.

Q: Can any electric vehicle use an AC EV charger?

A: Most electric vehicles are compatible with AC EV chargers, as they are equipped with onboard converters to handle AC to DC conversion for the battery. However, it's crucial to check your vehicle's specifications for the type of connector it uses (e.g., Type 1 or Type 2) and the maximum charging capacity to ensure compatibility with the charger.

Q: How do I choose the right AC EV charger for my home?

A: When choosing an AC EV charger for your home, consider the following factors:

  • Charging Speed: Match the charger’s output (kW) with your vehicle’s charging capacity to find a balance between charging speed and your electrical system's capabilities.
  • Connector Type: Ensure the charger’s plug type is compatible with your vehicle.
  • Smart Features: Consider chargers with smart features like scheduling and monitoring for enhanced convenience and efficiency.
  • Installation Requirements: Assess your home’s current electrical system to determine if any upgrades are needed to support the charger.

Q: How often should I maintain my AC EV charger?

A: Regular maintenance is key to ensuring the longevity and efficiency of your AC EV charger. Perform visual inspections for any signs of wear or damage monthly, and clean the unit regularly to keep it free of dust and debris. Additionally, check for firmware updates periodically and consult a professional for any technical issues or annual check-ups to ensure everything is functioning correctly.
